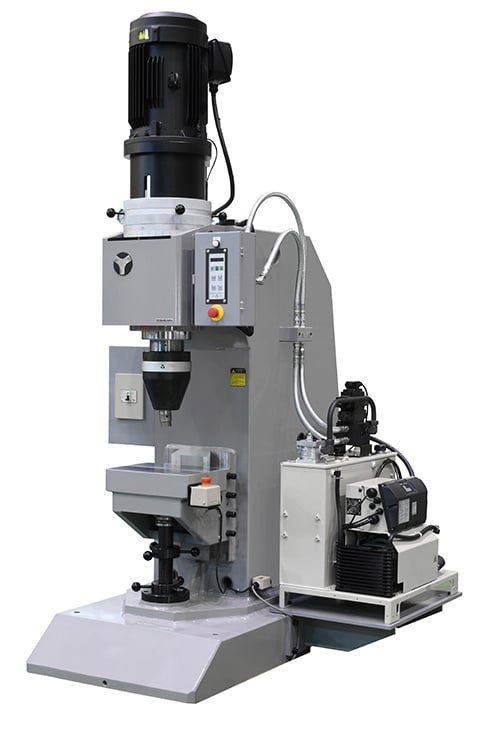

US-300
Product Description
Available in a wide range of sizes from small to extra large, this is the most standard hydraulic riveting machine.
You can choose from a wide lineup to suit your riveting capabilities and working conditions.
Technical Specifications
Specification
| Riveting Capacity | φ15～φ30mm Mild steel | Pump motor | 5.5kw AC200V 50/60Hz |
| Maximum pressure | 98.0kN (10,000kgf) | Power Source | 3φ AC200V 50/60Hz 7.5kVA |
| Cylinder Stroke | 0 ~ 60mm | Installation floor size | W1,080xD1,580mm |
| Working Time Timer | 0.2～9.99sec | Height | 2,580 mm |
| Spindle motor | 11kw 6P AC200V 50/60Hz (inverter control) | weight | 3,800kg |
