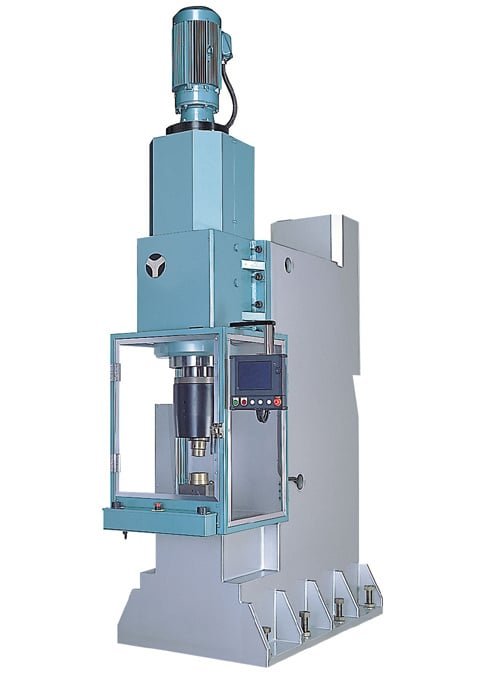

US-600
Product Description
Available in a wide range of sizes from small to extra large, this is the most standard hydraulic riveting machine.
You can choose from a wide lineup to suit your riveting capabilities and working conditions.
Technical Specifications
Specification
| Riveting Capacity | φ20～φ42mm Mild steel | Pump motor | 5.5kw AC200V 50/60Hz |
| Maximum pressure | 196kN (20,000kgf) | Power Source | 3φ AC200V 50/60Hz 27kVA |
| Cylinder Stroke | 20 ~ 100mm | Installation floor size | (Main body) W900xD1,580mm, (Tank) W630xD830mm |
| Working Time Timer | 0.2～9.99sec | Height | 3,295 mm |
| Spindle motor | 7.5kw AC200V 50/60Hz (inverter control) | weight | (Main body) 5,600kg, (Tank) 700kg |
