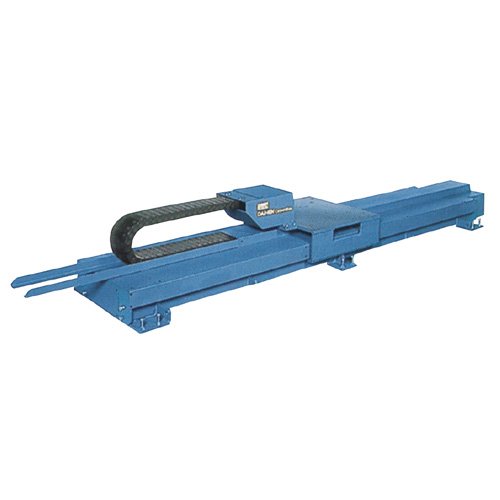

Model 1SB
Product Description
* A maximum of 330 kg can be loadeb. * Dust-proof structure prevents spatter, oil and dust from entering.
Technical Specifications
| Model Name | A2SB102-E, A2SB202-E | |
| Stroke Length | 1 m, 2 m | |
| Max. Moving Speed | 0.3 m/s | |
| Max. Mounting Capacity | 330 kg | |
| Position Repeatability | ± 0.1 mm | |
| A2SB102-E | A2SB202-E | |
| Stroke S (mm) | 1000 | 2000 |
| Whole Length L (mm) | 2510 | 3510 |
| Mass (kg) | 450 | 550 |
