AEP-500
Product Description

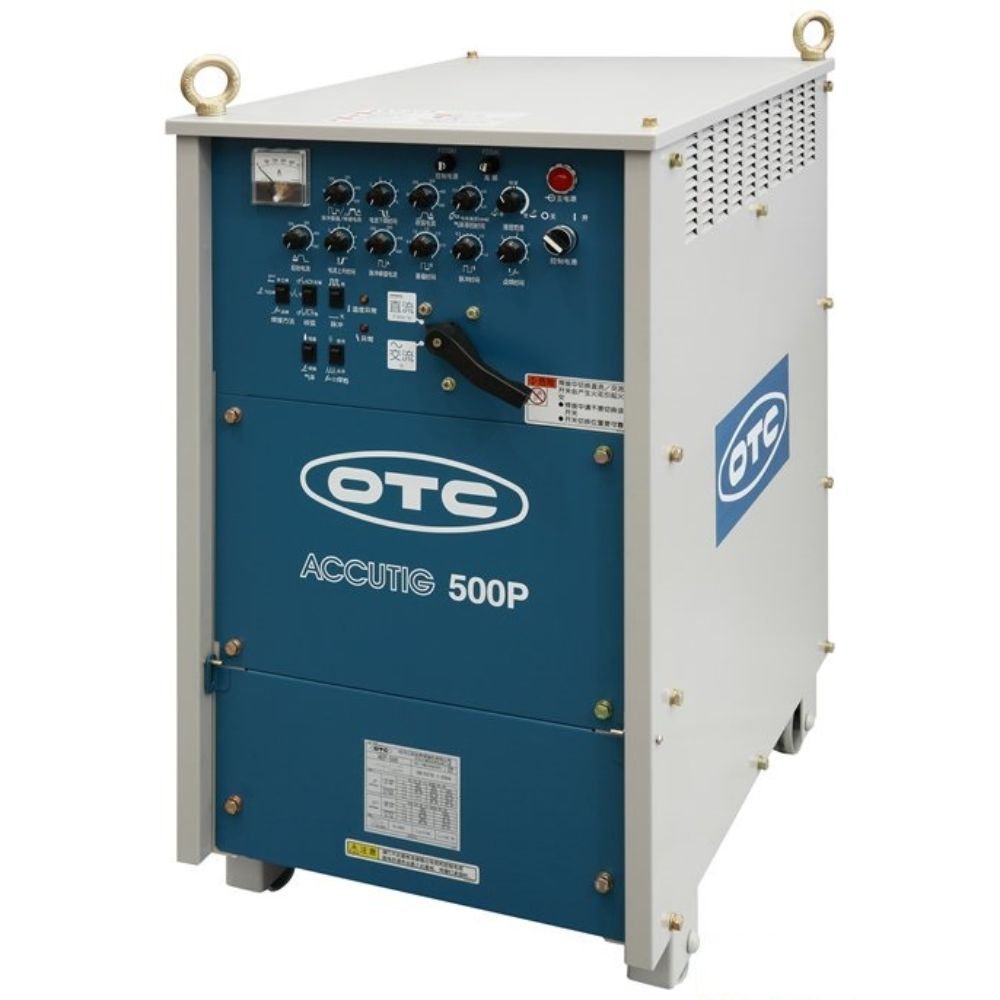

Thyrister Control AC/DC Pulsed TIG Welding Machine
AEP-500 (ACCUTIG 500P)
Highest-quality AC/DC Pulsed TIG welding machine achieve high quality welding of aluminum
by varied AC TIG current waveforms and pulse functions.
7 welding modes
DC PULSED TIC
DC Stick
Rectangular Wave AC Pulsed TIG
Rectangular Wave AC Stick
DC TIG
TIG Arc Spot
Rectangular Wave AC TIG
Technical Specifications
| Specification | ||
| Welding power supply | AEP-300 | AEP-500 |
| Rated input | Single phase 380/400V | Single phase 380/400V |
| Rated output | 300A | 500A |
| Output adjustment range | AC～350A / DC～350A | AC～500A / DC～500A |
| Rated utilization rate | 100% | 100% |
| Mass (dimensions) | 176kg(460x663x859mm) | 273kg(508x724x895mm) |
| Welding torches | AW-18 | AW-12 |
| Cable Hose | BAB-3501 | BMRH-5001 |
