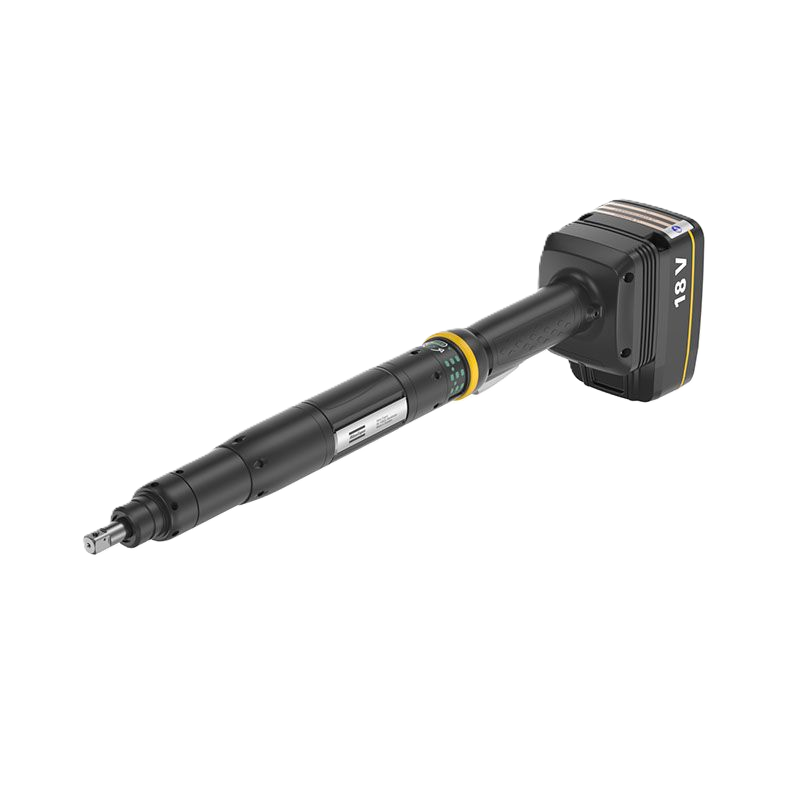

ITB-S61-15-10
Product Description
Straight Cordless Nutrunner Tensor ITB-S, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-S offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-S is part of the Tensor IxB Family which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities
Technical Specifications
Specification
| Category | Parameter | Imperial | Metric | Standards/Notes |
| Performance | Max Speed | 2,000 rpm | 2,000 rpm | Ultra-high speed |
| Torque Range | 3.6-11.8 ft-lb | 4.9-16.0 Nm | ≤5% variation | |
| Noise Level | <70 dB(A) | <70 dB(A) | ISO15744 compliant | |
| Vibration | <2.5 m/s² | <2.5 m/s² | ISO28927-2 compliant | |
| Power System | Motor | 1500W DC, 35V | 1500W DC, 35V | High-power motor |
| Battery | 18/36V Li-Ion | 18/36V Li-Ion | 1 battery | |
| Weight (tool only) | 3.7 lb | 1.68 kg | Lightweight design | |
| Weight (with battery) | 4.9 lb | 2.22 kg | ||
| Dimensions | Length | 18.8" | 477 mm | Compact size |
| Width | 2.9" | 74.5 mm | ||
| Height | 3.5" | 88.5 mm | ||
| CS Distance | 0.67" | 17 mm | ||
| Output Size | 3/8" square | 9.5 mm square | Standard drive | |
| Design | Model Type | Straight | Straight | Ergonomic |
| Shut-off System | Transducer | Transducer | Precision control | |
| Tool Family | ITB | ITB | ||
| Certifications | Safety Standards | EN 62841 series | EN 62841 series | |
| EMC Standards | EN 300 328 | EN 300 328 | ||
| Certifications | ETL, FCC, EAC | ETL, FCC, EAC | KC: No | |
| Directives | EU MD, RoHS, RED | EU MD, RoHS, RED | Fully compliant |
