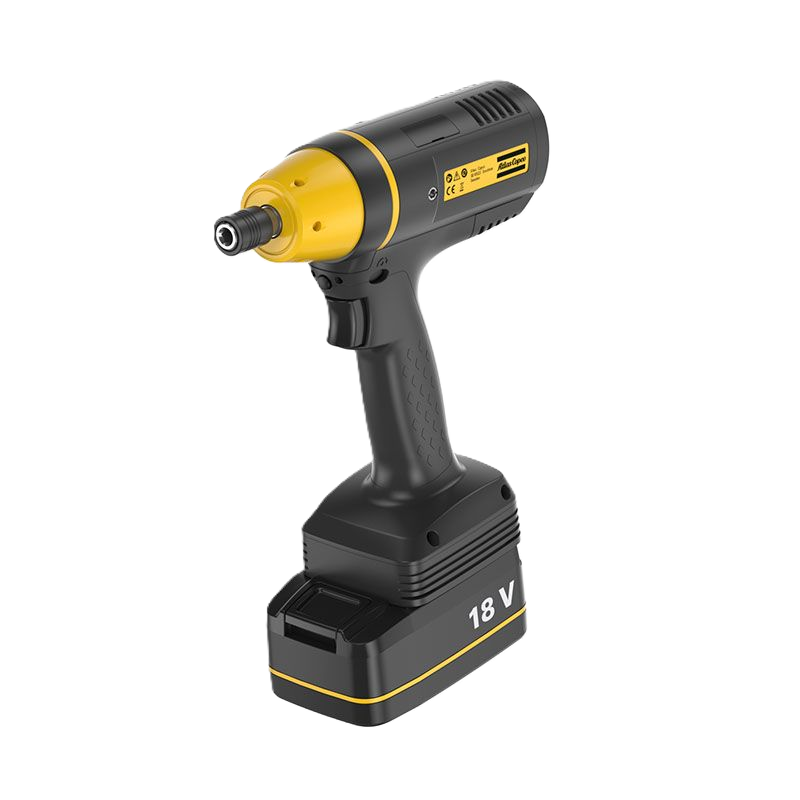

ETP TBP-S61-32-42

Name: ETP TBP-S61-32-42
Brand: ATLAS COPCO
Availability: InStock

Product Description

With the same hardware as the TBP but with a slimmer software version suited for quality critical tightenings, the TBP-S cordless pulse tool is a robust yet slender solution for the middle segment. With a mix of productivity, ergonomics and error-proofing, the TBP-S is proven to offer less maintenance and less down-time in production. Just like the TBP, the TBP-S shows the lowest vibration levels in the market. This means operator comfort and safety, reducing work related costs caused by fatigue and injuries.
Country of origin is SE.

Technical Specifications

Specification

Category	Parameter	Imperial	Metric	Standards/Notes
Performance	Speed Range	1,000-6,000 rpm	1,000-6,000 rpm	Variable speed control
	Torque Range	8.9-25.8 ft-lb	12-35 Nm	≤7.5% variation
	Noise Level	78 dB(A)	78 dB(A)	EN 62841 compliant
	Vibration	<2.5 m/s²	<2.5 m/s²	ISO28927-2 compliant
Power System	Motor	350W DC, 18V	350W DC, 18V	Efficient design
	Battery	18/36V Li-Ion	18/36V Li-Ion	1 battery
	Oil Capacity	-	6.5 ml	Pulse unit
	Weight (tool only)	2.93 lb	1.33 kg
	Weight (with battery)	4.05 lb	1.84 kg
Dimensions	Length	7.7"	196 mm	Compact design
	Width	-	-
	Height	9.1"	231 mm
	CS Distance	1.14"	29 mm
	Output Size	1/4" square	6.35 mm square	Precision drive
Design	Model Type	Pistol	Pistol	Ergonomic grip
	Shut-off System	Transducer	Transducer	Precision control
	Tool Family	TBP	TBP
	Lighting	Yes	Yes	Work area illumination
	Connectivity	Bluetooth/Wi-Fi	Bluetooth/Wi-Fi	Smart tool features
Certifications	Safety Standards	EN 62841 series	EN 62841 series
	EMC Standards	EN 300 328	EN 300 328
	Certifications	ETL, FCC, EAC	ETL, FCC, EAC	IC ID: 5325A-0965
	Directives	EU MD, RoHS, RED	EU MD, RoHS, RED	Fully compliant
