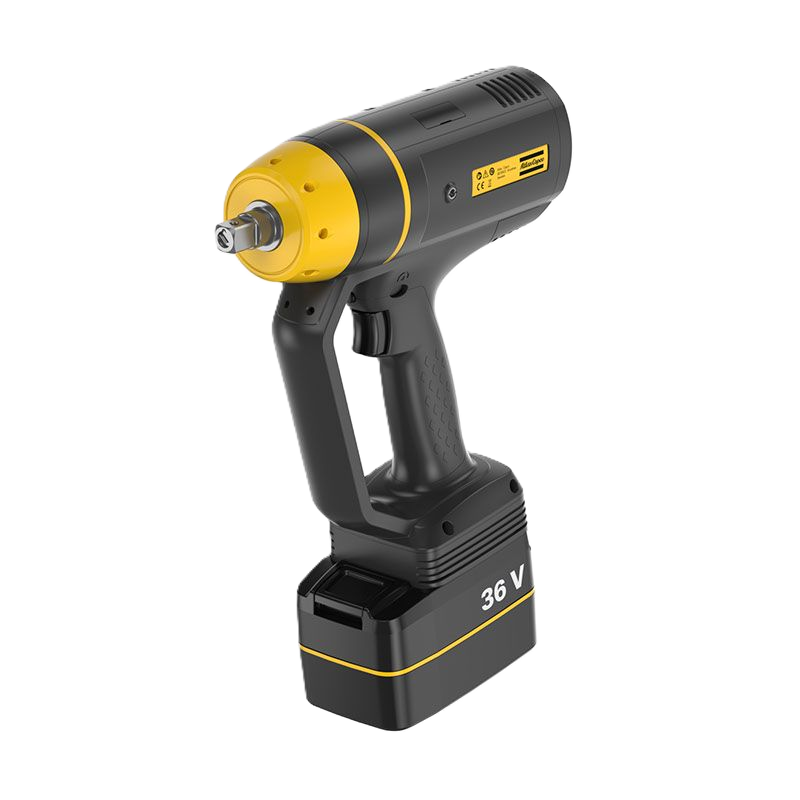

ETP TBP-S131-150-13
Product Description
With the same hardware as the TBP but with a slimmer software version suited for quality critical tightenings, the TBP-S cordless pulse tool is a robust yet slender solution for the middle segment. With a mix of productivity, ergonomics and error-proofing, the TBP-S is proven to offer less maintenance and less down-time in production. Just like the TBP, the TBP-S shows the lowest vibration levels in the market. This means operator comfort and safety, reducing work related costs caused by fatigue and injuries.
Country of origin is SE.
Technical Specifications
Specification
| Category | Parameter | Imperial | Metric | Standards/Notes |
| Performance | Speed Range | 1,000-3,600 rpm | 1,000-3,600 rpm | Variable speed control |
| Torque Range | 40.6-110.6 ft-lb | 55-150 Nm | ≤7.5% variation | |
| Noise Level | 71 dB(A) | 71 dB(A) | EN 62841 compliant | |
| Vibration | <2.5 m/s² | <2.5 m/s² | ISO28927-2 compliant | |
| Power System | Motor | 1500W DC, 36V | 1500W DC, 36V | High-power motor |
| Battery | 36V Li-Ion | 36V Li-Ion | 1 battery | |
| Oil Capacity | 1.08 fl oz | 32 ml | Pulse unit | |
| Weight (tool only) | 6.17 lb | 2.8 kg | ||
| Weight (with battery) | 7.94 lb | 3.6 kg | ||
| Dimensions | Length | 8.9" | 227 mm | |
| Width | - | - | ||
| Height | 10.0" | 255 mm | ||
| CS Distance | 1.5" | 38 mm | ||
| Output Size | 1/2" square | 12.7 mm square | Heavy-duty drive | |
| Design | Model Type | Pistol | Pistol | Ergonomic grip |
| Shut-off System | Transducer | Transducer | Precision control | |
| Tool Family | TBP | TBP | ||
| Lighting | Yes | Yes | Work illumination | |
| Connectivity | Bluetooth/Wi-Fi | Bluetooth/Wi-Fi | Smart tool features | |
| Certifications | Safety Standards | EN 62841 series | EN 62841 series | |
| EMC Standards | EN 300 328 | EN 300 328 | ||
| Certifications | ETL, FCC, EAC, KC | ETL, FCC, EAC, KC | KC ID: R-R-50A-TBP | |
| Directives | EU MD, RoHS, RED | EU MD, RoHS, RED | Fully compliant |
