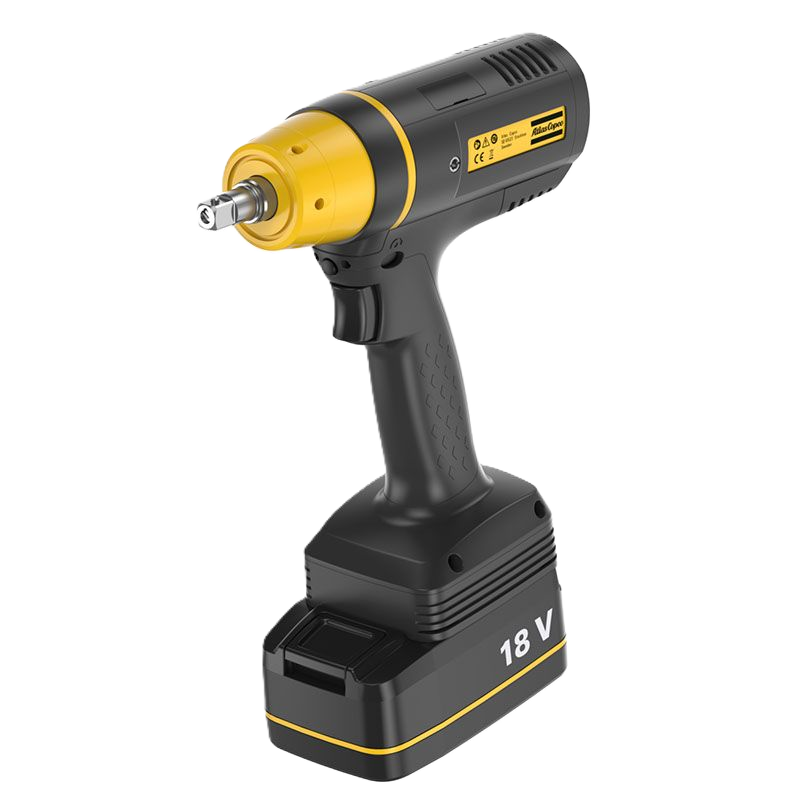

ETP TBP-S81-55-10
Product Description
With the same hardware as the TBP but with a slimmer software version suited for quality critical tightenings, the TBP-S cordless pulse tool is a robust yet slender solution for the middle segment. With a mix of productivity, ergonomics and error-proofing, the TBP-S is proven to offer less maintenance and less down-time in production. Just like the TBP, the TBP-S shows the lowest vibration levels in the market. This means operator comfort and safety, reducing work related costs caused by fatigue and injuries.
Country of origin is SE.
Technical Specifications
Specification
| Category | Specification | Value |
| Power | Motor Power | 500 W |
| Motor Voltage Type | DC | |
| Motor Voltage | 18 V | |
| Capacity | Oil Volume (Full Pulse Unit) | 9.5 mL |
| Dimensions & Weight | CS Distance | 29 mm |
| Height | 231 mm | |
| Length | 200 mm | |
| Output Size | 3/8" | |
| Weight | 1.5 kg | |
| Speed | Max Speed Range | 6000 rpm |
| Min Speed Range | 1000 rpm | |
| Design & Functions | Communication Type | Bluetooth/Wi-Fi |
| Built-in Light | Yes | |
| Model Type | Pistol Grip | |
| Output Type | Square, Male | |
| SCIP Code | ddc51461-eb20-4be9-a4e0-431362f5643b | |
| Shut-off System | Transducer | |
| Tool Family | TBP | |
| Noise & Vibrations | Sound Power Level | 92 dB(A) |
| Sound Pressure Level | 81 dB(A) | |
| Sound Standard | EN 62841-1, EN 62841-2-2 | |
| Sound Uncertainty | 3 dB(A) | |
| Vibration Standard | ISO 28927-2 | |
| Vibration Value | <2.5 m/s² | |
| Certifications & Standards | CMIIT ID | 2018AJ0237 |
| EAC Certified | Yes | |
| EU Compliance | (EU) 2022/30, 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) | |
| EU Standards | EN 62841-1, EN 300 328, EN 301 489, etc. | |
| ETL Listed | Yes (Control No. 3008099) | |
| EU SAR Value | 0.26 W/kg | |
| FCC ID | PVH0965 | |
| IC ID | 5325A-0965 | |
| KC Certified (South Korea) | Yes (KC ID: R-R-50A-TBP) | |
| UK Regulations | S.I. 2008/1597, 2012/3032, 2017/1206 | |
| WEEE Category | 5 (Small equipment <50 cm) |
