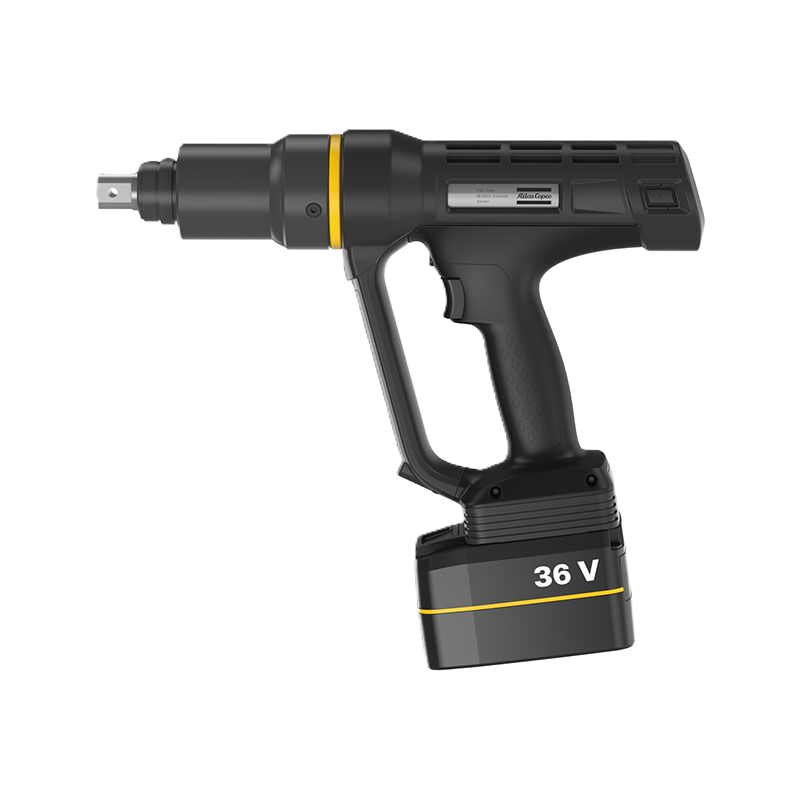

ETP SRB81-200-20
Product Description
The SRB81 has three functionality levels, each one designed to suit various users. All models are equipped with a transducer. The digital version can be used straight out of the box, with a set and go function using the HMI. The Smart model has a built in network, so any device with WiFi can log in, configure the tool and receive data, with no external software required. The Connected model has the additional functionality to connect to the Power Focus, enabling the user to send live to the controller or any other system, increasing process control and traceability.
Country of origin is SE.
Technical Specifications
Specification
| Category | Specification | Imperial | Metric |
| Torque | Max Torque Range | 147 ft-lb | 200 Nm |
| Min Torque Range | 45 ft-lb | 61 Nm | |
| Power | Motor Power | — | 1500 W |
| Motor Voltage Type | — | DC | |
| Motor Voltage | — | 36 V | |
| Speed | Max Speed Range | — | 139 rpm |
| Battery | Battery Type | — | Li-Ion 36V (1×) |
| Weight (Incl. Battery) | 9.7 lb | 4.4 kg | |
| Noise & Vibrations | Sound Pressure Level | — | 54 dB(A) |
| Sound Standard | — | ISO 15744 | |
| Vibration Standard | — | ISO 28927-2 | |
| Vibration Value | — | <2.5 m/s² | |
| Dimensions & Weight | Height | — | 239 mm |
| Length | — | 338 mm | |
| Output Size | 3/4" | 19 mm | |
| Weight (Tool Only) | 8 lb | 3.6 kg | |
| Width | — | 74.5 mm | |
| Certifications | CCC Certified | No | — |
| CMIIT ID | — | 2018AJ0238 | |
| EAC Certified | Yes | — | |
| EU Standards | EN 62841-1, EN 300 328, etc. | — | |
| ETL Listed | Yes (No. 3008099) | — | |
| EU SAR Value | — | 0.49 W/kg | |
| FCC ID | PVH0965 | — | |
| KC Certified | Yes (ID: R-R-50A-SRBHA) | — | |
| Design & Functions | Model Type | Pistol Grip | — |
| Output Type | Square, Male | — | |
| SCIP Code | 68c2f2d6-c770-45dc-b4e1-5cfc88785683 | — | |
| Shut-off System | Transducer | — | |
| Tool Family | SRB | — |
