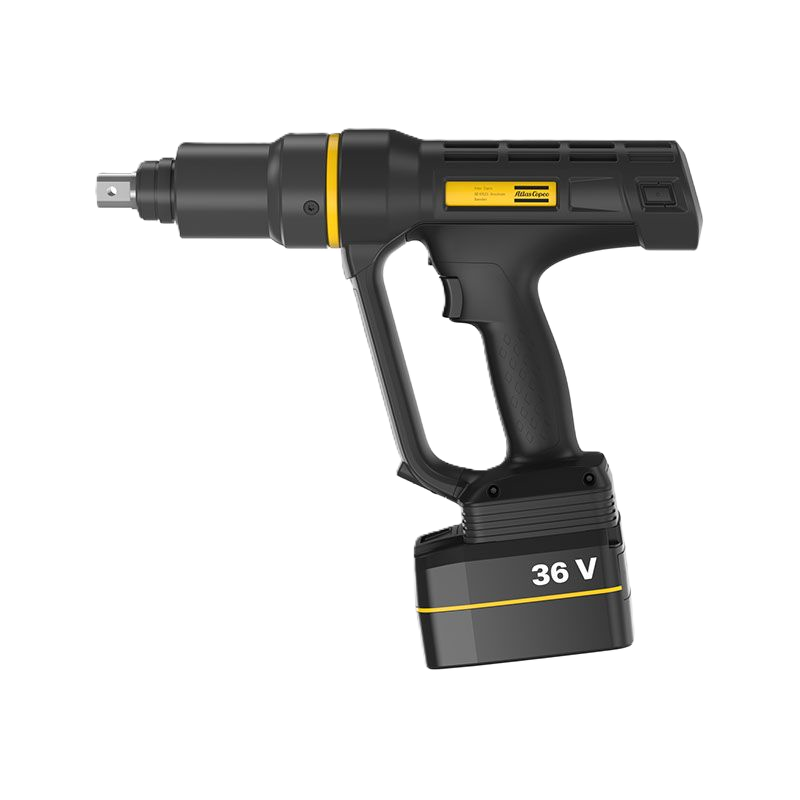

ETP SRB81-500-20-D
Product Description
The SRB81 has three functionality levels, each one designed to suit various users. All models are equipped with a transducer. The digital version can be used straight out of the box, with a set and go function using the HMI. The Smart model has a built in network, so any device with WiFi can log in, configure the tool and receive data, with no external software required. The Connected model has the additional functionality to connect to the Power Focus, enabling the user to send live to the controller or any other system, increasing process control and traceability.
Country of origin is SE.
Technical Specifications
Specification
| Category | Specification | Imperial Value | Metric Value | Notes |
| Torque | Maximum Torque | 368 ft-lb | 500 Nm | - |
| Minimum Torque | 111 ft-lb | 150 Nm | - | |
| Power System | Motor Power | - | 1500 W | DC |
| Voltage | - | 36 V | - | |
| Performance | Maximum Speed | - | 65 rpm | - |
| Battery | Type | - | Li-Ion 36V | 1 battery |
| Weight with Battery | 11.9 lb | 5.4 kg | - | |
| Noise & Vibration | Sound Pressure | - | 54 dB(A) | ISO 15744 |
| Vibration Level | - | <2.5 m/s² | ISO 28927-2 | |
| Dimensions | Height | 9.4 in | 239 mm | - |
| Length | 14.5 in | 368 mm | - | |
| Width | 2.9 in | 74.5 mm | - | |
| Tool Weight (without battery) | 10.1 lb | 4.6 kg | - | |
| Drive System | Output Size | 3/4" | 19 mm | Square, Male |
| Certifications | ETL Listed | Yes (#3008099) | - | - |
| EAC Certified | Yes | - | - | |
| FCC ID | PVH0965 | - | - | |
| KC Certified | Yes | - | R-R-50A-SRBHA |
