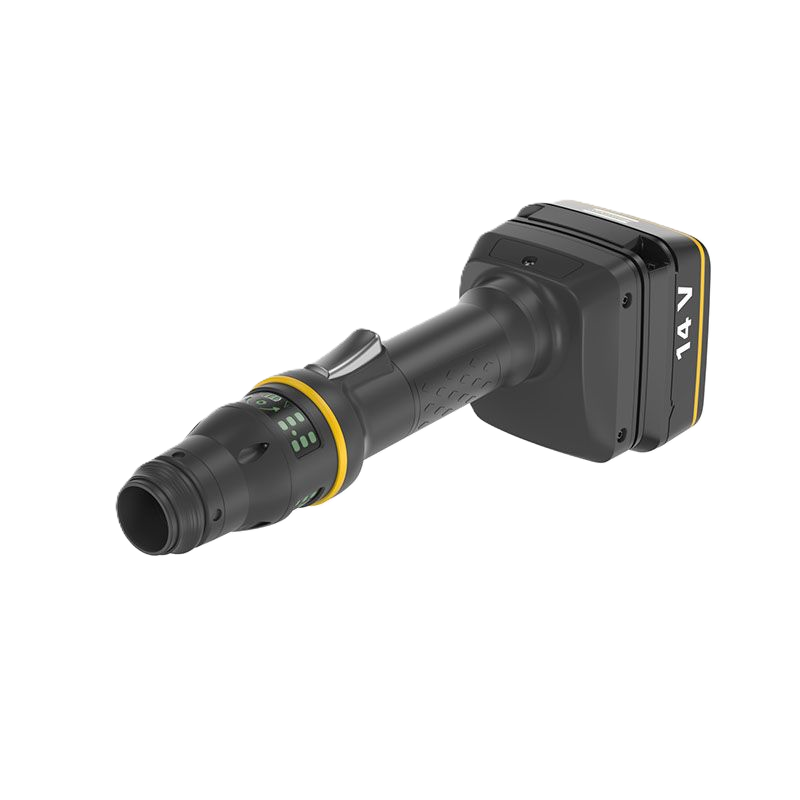

ICB-Q21-13
Product Description
The Angle Battery Modular Nutrunner Tensor ICB-Q is a small, ergonomic and, one-handed tool, specifically designed for cramped area applications. This model, equipped with a Quick-change system, allows the operator to use the correct angle-head (Q2) for every application. This tool also offers the features of the ICB-A family such as a built-in EHMI display, rotating angle head and trigger. Tensor ICB-Q is part of the Tensor IxB Family
Country of origin is SE.
Technical Specifications
Specification
| Category | Details |
| Dimensions & Weight | |
| Height | 88.6 mm |
| Length | 254 mm |
| Width | 74.6 mm |
| Output Size | IQ-13 |
| Weight | 2.2 lb |
| Noise & Vibrations | |
| Sound Pressure | < 70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Standard | ISO28927-2 |
| Vibration Value | < 2.5 m/s² |
| Certifications, Standards & Directives | |
| CCC Certified | No |
| CMIIT ID | 2020AJ14906 |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC (MD); 2011/65/EU (RoHS); 2014/53/EU (RED); 2015/863/EU (RoHS amendment) |
| EU Standard | EN 300 328 V2.2.2; EN 300 440 V2.1.1; EN 301 489-1 V2.1.1; EN 301 489-17 V3.2.4; EN 301 893 V2.1.1; EN 50566:2017; EN 55014-1:2017; EN 55014-2:2015; EN 61000-6-2:2005; EN 61000-6-3:2007+A1; EN 61000-6-4:2007+A1; EN 62841-1:2015; EN 62841-2-2:2015 |
| ETL Control Number | 3008099 |
| ETL Listed | Yes |
| ETL Text | 6 - 62841-2-2 |
| EU SAR Value | 0.55 W/kg |
| FCC ID | XF6-M7DB7 |
| IC ID | 8407A-M7DB7 |
| KC Certified | No |
| UK Regulations | S.I. 2008/1597; S.I. 2012/3032; S.I. 2017/1206 |
| UK Standard | EN 300 328 V2.2.2; EN 300 440 V2.1.1; EN 301 489-1 V2.1.1; EN 301 489-17 V3.2.4; EN 301 893 V2.1.1; EN 50566:2017; EN 55014-1:2017; EN 55014-2:2015; EN 61000-6-2:2005; EN 61000-6-3:2007+A1; EN 61000-6-4:2007+A1; EN 62841-1:2015; EN 62841-2-2:2015 |
| WEEE Category | 5 - Small equipment <50cm |
| Battery Information | |
| Battery Type | Li-Io 14/18 V |
| Battery Quantity | 1 Li-ion |
| Weight incl. Battery | 3 lb |
| Torque | |
| Torque Range (Max) | 9.6 ft-lb |
| Torque Range (Min) | 2.5 ft-lb |
| Torque Scatter (3s) | ≤ 5 % |
| Power | |
| Motor Power | 500 W |
| Motor Voltage Type | DC |
| Motor Voltage | 35 V |
| Design & Functions | |
| Model Type | Quick change |
| Output Type | Quick change interface |
| Quick Change Interface | IQ-13 |
| Shut-off System | Transducer |
| Tool Family | ICB |
| Speed | |
| Speed Range (Max) | 897 r/min |
