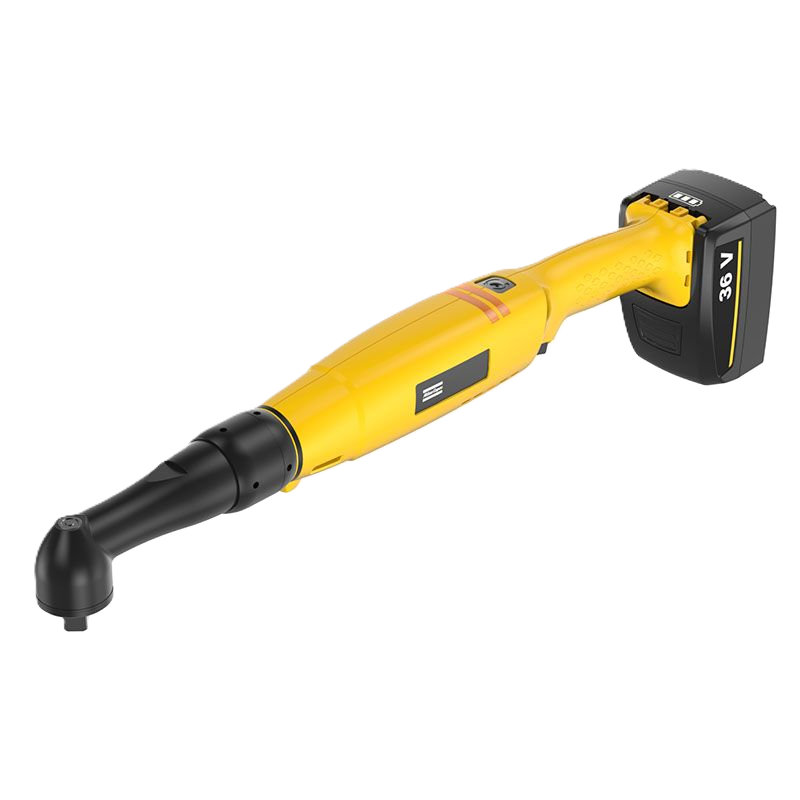

BCV BL-60-13
Product Description
The Angle Cordless Nutrunner BCV is a lightweight and handy tool ideal for quality critical applications where flexibility is essential. Its compact size and Lithium-Ion batteries put it among the lightest battery nutrunners on the market. The nutrunner provides variable speed and plenty of power with range of torque level offering maximum operator comfort. The slim, well-balanced design and ergonomic angle make the BCV Cordless Nutrunner the kind of tool that you can work with all day.
Country of origin is SE.
Technical Specifications
Specification
| Specification | Value |
| Speed range max | 160 r/min |
| Speed range min | 40 r/min |
| CS distance | 20 mm |
| Height | 62 mm |
| Length | 530 mm |
| Output size | 1/2" |
| Square drive | 1/2 in |
| Weight | 4.4 lb |
| Battery | Li-Io 36 V |
| Motor power | 1750 W |
| Motor voltage | 36 V |
| EAC certified | No |
| EU Legislation | 2006/42/EC (MD) || 2011/65/EU (RoHS) || 2014/30/EU (EMC) || 2015/863/EU (RoHS amendment) |
| EU Standard | EN 62841-1:2015, EN 62841-2-2:2014 + AC:2015, EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 55014-1:2017, EN 55014-2:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 - 62841-2-2 |
| KC certified | No |
| UK Regulations | S.I. 2008/1597 || S.I. 2012/3032 || S.I. 2016/1091 |
| UK Standard | EN 61000-6-2:2005 || EN 55014-1:2017 || EN 55014-2:2015 || EN 61000-6-3:2007 + A1:2011 || EN 62841-2-2:2014 + AC:2015 || EN 62841-1:2015 |
| WEEE | 4 - Large equipment >50cm |
| Communication type | n/a |
| Model type | Angle |
| Output type | Square, Male |
| Shut-off system | Clutch |
| Tool family | BCV |
| Sound pressure | <75 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Torque range max | 44.3 ft-lb |
| Torque range min | 18.46 ft-lb |
| Torque scatter 3s | ≤ 10 % |
