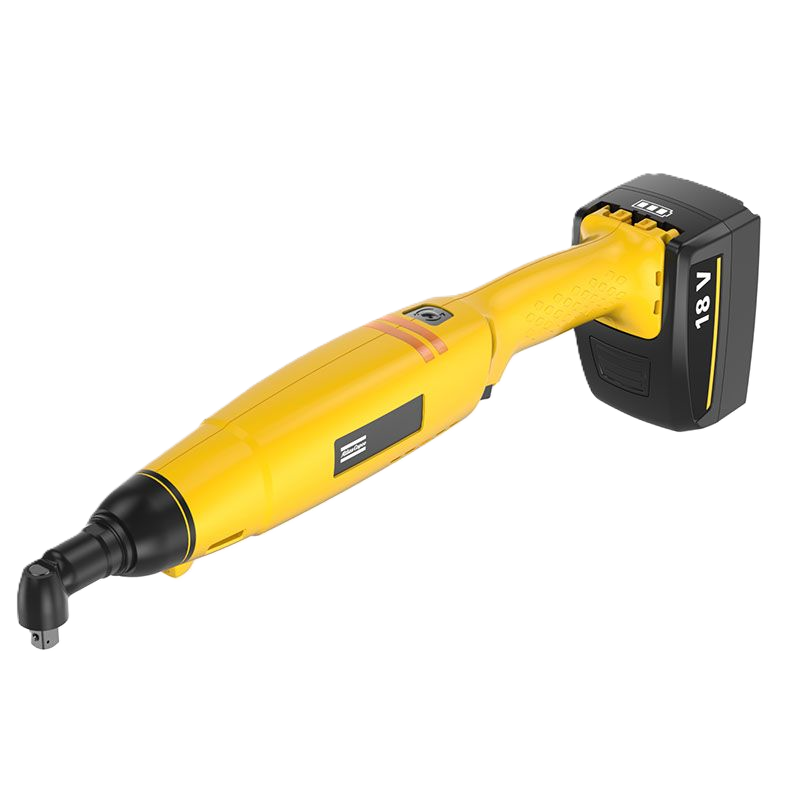

BCV BL-15-10
Product Description
The Angle Cordless Nutrunner BCV is a lightweight and handy tool ideal for quality critical applications where flexibility is essential. Its compact size and Lithium-Ion batteries put it among the lightest battery nutrunners on the market. The nutrunner provides variable speed and plenty of power with range of torque level offering maximum operator comfort. The slim, well-balanced design and ergonomic angle make the BCV Cordless Nutrunner the kind of tool that you can work with all day.
Country of origin is SE.
Technical Specifications
Specification
| Category | Specification |
| Technical Specifications | |
| Imperial / Metric Speed | Speed range max: 480 r/min Speed range min: 200 r/min |
| Dimension & Weight | CS distance: 11 mm Height: 37 mm Length: 419 mm Output size: 3/8" Square drive: 3/8 in Weight: 2.6 lb |
| Battery Information | Battery: Li-Io 18 V Motor power: 970 W Motor voltage: 18 V |
| Certifications, Standards & Directives | EAC certified: Yes EU Legislation: 2006/42/EC (MD) || 2011/65/EU (RoHS) || 2014/30/EU (EMC) || 2015/863/EU (RoHS amendment) EU Standard: EN 62841-1:2015, EN 62841-2-2:2014 + AC:2015, EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 55014-1:2017, EN 55014-2:2015 ETL control number: 3008099 ETL listed: Yes ETL text: 6 - 62841-2-2 KC certified: Yes KC ID: MSIP-REI-50A-BCPBL UK Regulations: S.I. 2008/1597 || S.I. 2012/3032 || S.I. 2016/1091 UK Standard: EN 61000-6-2:2005 || EN 55014-1:2017 || EN 55014-2:2015 || EN 61000-6-3:2007 + A1:2011 || EN 62841-1:2015 || EN 62841-2-2:2014 + AC:2015 WEEE: 5 - Small equipment <50cm |
| Design & Functions | Communication type: n/a Model type: Angle Output type: Square, Male Shut-off system: Clutch Tool family: BCV |
| Noise & Vibrations | Sound pressure: <70 dB(A) Sound standard: ISO15744 Vibration standard: ISO28927-2 Vibration value: <2.5 m/s² |
| Torque | Torque range max: 11.1 ft-lb Torque range min: 3.7 ft-lb Torque scatter 3s: ≤ 10 % |
