ATLAS COPCO
Click to zoom • Drag to pan

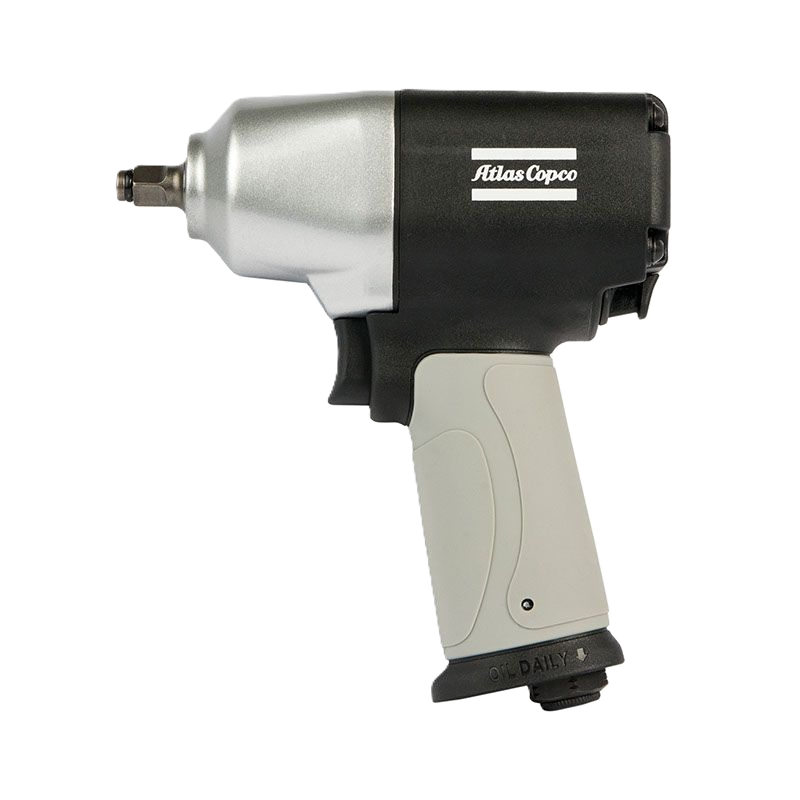

W2910
Product Description
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Technical Specifications
Specification
| Parameter | Specification |
| Max Torque | 500 Nm (369 ft-lb) |
| Torque Range | 150-400 Nm (111-295 ft-lb) |
| Free Speed | 6500 RPM |
| Air Consumption | 17 l/s (0.6 ft³/s) |
| Working Pressure | 6.2 bar (90 psi) |
| Air Inlet | 1/4" NPT (6.35 mm) |
| Drive Size | 3/8" square (9.53 mm) |
| Bolt Capacity | 0-13 mm (0-0.51 in) |
| Length | 160 mm (6.3 in) |
| Weight | 1.24 kg (2.73 lb) |
| Clutch Type | Twin Hammer |
| Sound Pressure | 89 dB(A) |
| Vibration Level | 3.3 m/s² |
| Standards Compliance | ISO 11148-6, 2006/42/EC |
| EAC Certified | Yes |
