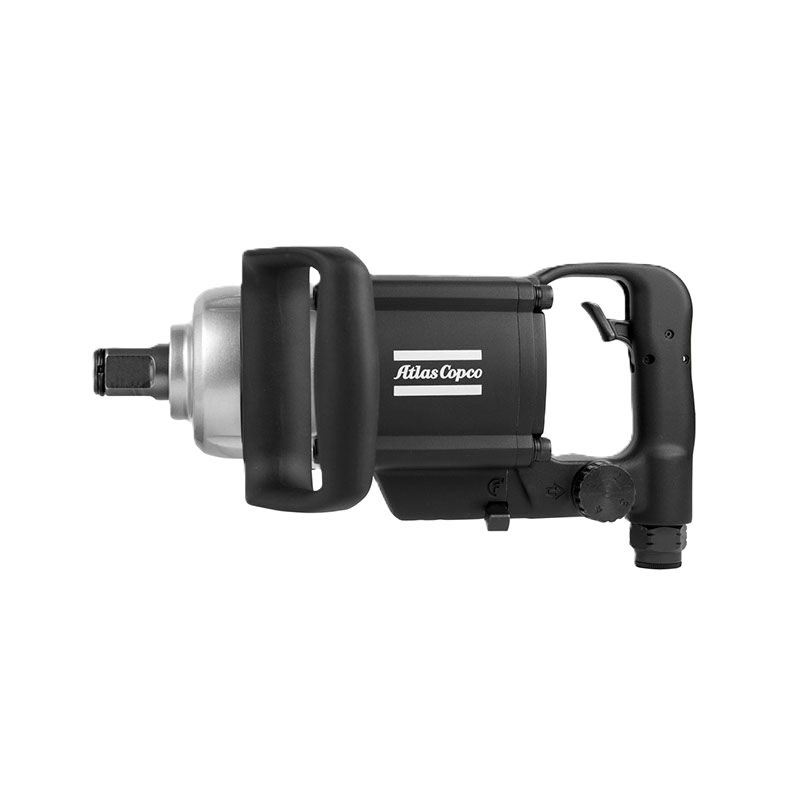

W2427
Product Description
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Technical Specifications
Specification
| Category | Specification |
| Torque | |
| Max Torque | 1,622 ft-lb (2,200 Nm) |
| Torque Range | 516-1,106 ft-lb (700-1,500 Nm) |
| Speed | |
| Free Speed | 4,500 RPM |
| Air Specifications | |
| Air Consumption | 36 l/s (1.27 ft³/s) |
| Max Working Pressure | 90 psi (6.2 bar) |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | ISO 11148-6 |
| Design & Functions | |
| Professional Grade (PRO) | Yes |
| Clutch Type | Twin Hammer |
| Noise & Vibrations | |
| Sound Power | 105 dB(A) |
| Sound Pressure | 94 dB(A) |
| Vibration Level | 16.19 m/s² (53.1 ft/s²) |
| Dimensions & Weight | |
| Air Inlet | 1/2" NPT |
| Bolt Capacity | 0-33 mm (0-1.3") |
| Length | 324 mm (12.76") |
| Recommended Hose | 19 mm (3/4") |
| Drive Size | 1" square drive |
| Weight | 14.7 lb (6.67 kg) |
