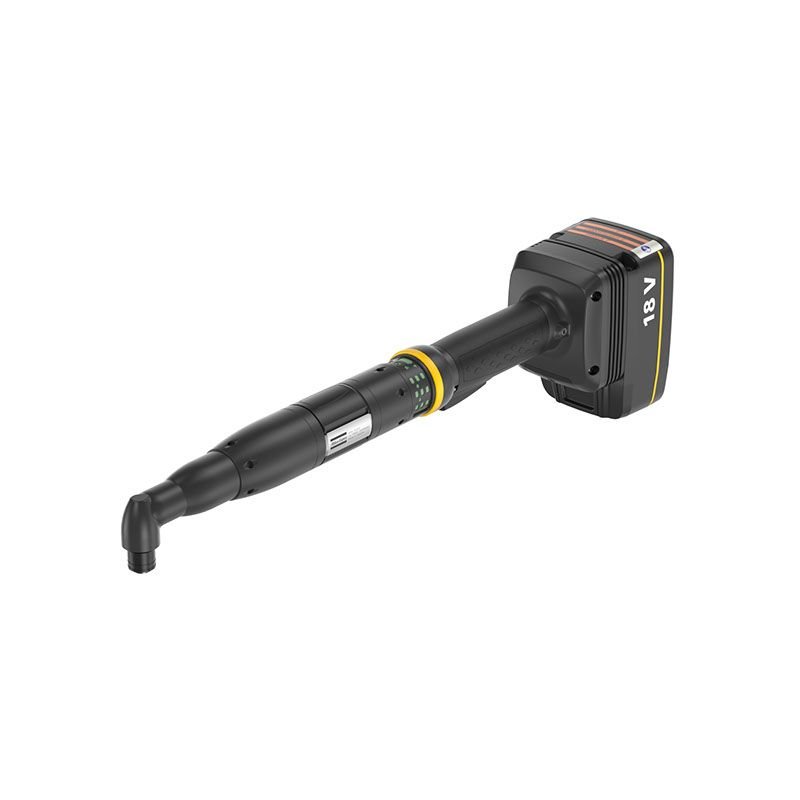

ITB-A31-05-I06
Product Description
Angle Cordless Nutrunner Tensor ITB-A, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-A offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-A is part of the Tensor IxB Family, which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities.
Technical Specifications
Specification
| Category | Specification |
| Certifications | • EAC: Yes • KC: Yes (R-R-50A-IXB Series) • ETL: Yes (3008099) • FCC: XF6-M7DB7 • IC: 8407A-M7DB7 • Capability Class: FK-MFU25 • Tolerance: TK15 |
| Compliance Standards | • EU: 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED) • UK: S.I. 2008/1597, 2012/3032, 2017/1206 • EN Standards: 62841 series, 61000 series, 55014 series |
| Performance | • Speed: 2972 rpm max • Torque: 0.7-3.6 ft-lb (±5%) • Motor: 1080W (35V DC) |
| Battery System | • Type: Li-ion (14/18/36V) • Weight with Battery: 4.4 lb (2kg) |
| Design Features | • Model: Angle Grinder • Output: 1/4" Female Hex with Bit Holder • Shut-off: Transducer • SCIP: d9974dff-6c04-473b-9f99-7864a9eed89d |
| Dimensions | • Length: 419.6mm (16.52") • Width: 74.5mm (2.93") • Height: 88.5mm (3.48") • Weight: 3.3 lb (1.5kg) |
| Noise/Vibration | • Sound: <70 dB(A) • Vibration: <2.5 m/s² |
| Environmental | • WEEE: Category 5 (<50cm) • SAR: 0.55 W/kg |
