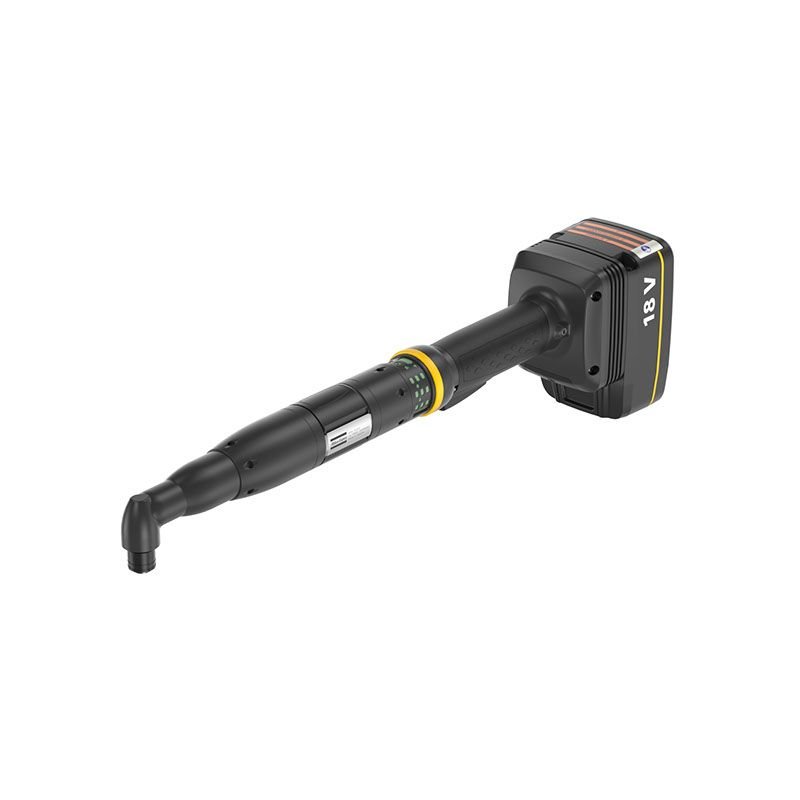

ITB-A31-10-I06
Product Description
Angle Cordless Nutrunner Tensor ITB-A, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-A offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-A is part of the Tensor IxB Family, which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities.
Technical Specifications
Specification
| Category | Specification |
| Certifications | • EAC: Yes • KC: Yes (R-R-50A-IXB Series) • ETL: Yes (3008099) • FCC: XF6-M7DB7 • IC: 8407A-M7DB7 • CMIIT ID: 2020AJ15158 • Capability Class: FK-MFU25 |
| Compliance | • EU Directives: MD, RoHS, RED • UK Regulations: S.I. 2008/1597, 2012/3032, 2017/1206 • Standards: EN 62841 series, EN 61000 series, ISO 15744/28927-2 |
| Performance | • Speed: 1270 rpm • Torque: 2.2-8.8 ft-lb (±5%) • Motor: 1080W DC (35V) |
| Battery | • Type: Li-ion (14/18/36V) • Weight with Battery: 4.4 lb (2kg) |
| Design | • Model: Angle Tool • Output: 1/4" Hexagon Female with Bit Holder • Shut-off: Transducer • Family: ITB Series |
| Dimensions | • Size: 419.6×74.5×88.5mm (16.52×2.93×3.48") • Weight: 3.3 lb (1.5kg) • CS Distance: 11mm |
| Noise/Vibration | • Sound: <70 dB(A) • Vibration: <2.5 m/s² |
| Environmental | • WEEE: Category 5 • SAR: 0.55 W/kg |
