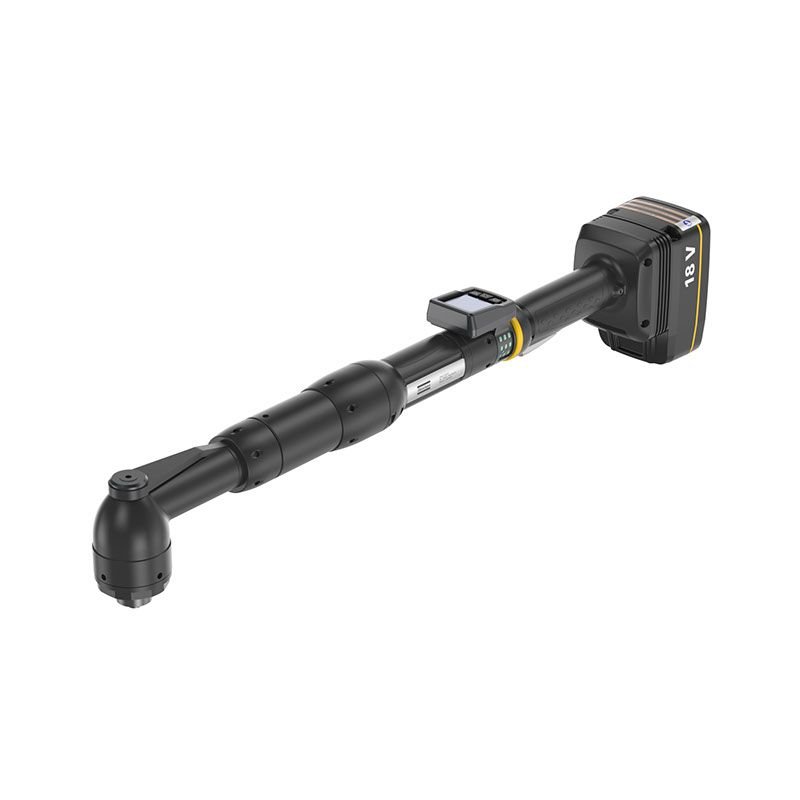

ITB-A61-200-HAD-HMI
Product Description
Angle Cordless Nutrunner Tensor ITB-A, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-A offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-A is part of the Tensor IxB Family, which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities.
Technical Specifications
Specification
| Category | Details |
| Certifications, Standards & Directives | Capability class: FK-MFU25 CMIIT ID: 2020AJ15158 EAC certified: Yes EU Legislation: 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) EU Standard: EN 300 328 v.2.2.2, EN 301 489-1 v.2.1.1, EN 301 489-17 v.3.1.1, EN 301 893 v.2.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2019, EN 61000-6-3:2007+A1, EN 61000-6-4:2007+A1, EN 62841-1:2015, EN 62841-2-2:2014/AC:2015 ETL control number: 3008099 ETL listed: Yes ETL text: 6 - 62841-2-2 EU SAR value: 0.55 W/kg FCC ID: XF6-M7DB7 IC ID: 8407A-M7DB7 KC certified: Yes KC ID: R-R-50A-IXB Series Tolerance Class: TK15 UK Regulations: S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 UK Standard: EN 300 328 v.2.2.2, EN 301 489-1 v.2.1.1, EN 301 489-17 v.3.1.1, EN 301 893 v.2.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2019, EN 61000-6-3:2007+A1, EN 61000-6-4:2007+A1, EN 62841-1:2015, EN 62841-2-2:2014/AC:2015 WEEE: 4 - Large equipment >50cm |
| Battery Information | Battery: Li-Io 18/36 V Type: 1 Li-ion Weight incl. battery: 9.3 lb |
| Power | Motor power: 1500 W Motor voltage type: d.c. Motor voltage: 35 V |
| Design & Functions | Model type: Angle Output type: Hold and drive SCIP: d9974dff-6c04-473b-9f99-7864a9eed89d Shut-off system: Transducer Tool family: ITB |
| Noise & Vibrations | Sound pressure: < 70 dB(A) Sound standard: ISO15744 Vibration standard: ISO28927-2 Vibration value: < 2.5 m/s² |
| Dimension & Weight | CS distance: 28.1 mm Height: 110.3 mm Length: 579.3 mm Output size: 200 HAD Weight: 8.2 lb Width: 74.5 mm |
| Speed | Speed range max: 171 r/min |
| Torque | Torque range max: 147 ft-lb Torque range min: 30 ft-lb Torque scatter 3s: ≤ 5 % |
