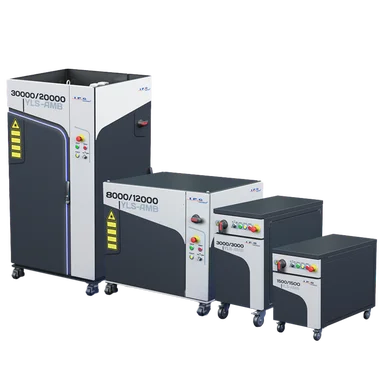

MULTI-MODE Dual-Beam Fiber Lasers (YLS-AMB Series
Product Description
YLS-AMB Adjustable Mode Beam Lasers
improve productivity in cutting, welding and additive
manufacturing by independent programmable
adjustment of the beam mode to any combination
of a small-spot high intensity bright core or a larger
ring-shaped beam. In cutting, AMB increases piercing
and cutting speeds and improves processing quality
of both thick and thin materials by the same laser. In
welding, AMB lasers eliminate spatter, cracking and
porosity at the highest welding speeds unattainable by
other methods.
Technical Specifications
Specification
| Parameter | YLS-1500/1500 | YLS-3000/3000, 5000/5000 | YLS-8000/12000 | YLS-15000/15000 | YLS-30000/20000 |
| Wavelength, nm | 1068–1080 | ||||
| Mode of Operation | CW/Modulated | ||||
| Modulation Frequency, kHz | 0–5 | ||||
| Total Average Power, kW | 3 | 6, 10 | 20 | 30 | 50 |
| Central Core Output Power, kW | 1, 1.5, 2 | 1, 3, 55 | 3, 6, 8 | 15 | 30 |
| Ring Beam Output Power, kW | 2, 1.5, 1 | 5, 3, 1, 5 | 15, 12, 10 | 15 | 20 |
| Power Tunability, % | 10–100 | ||||
| Power Stability, % | ±1 | ||||
| Central Fiber Core Diameter, µm | 50 | 50 or 100 | 100 | ||
| Outer Ring Fiber Diameter, µm | 65×150 | 65×150 or 130×300 | 130×300 | ||
| Central Beam Parameter Product, mm × mrad | 2 | 2 or 3.5 | 4.2 | ||
| Ring Beam Parameter Product, mm × mrad | <22 (Typ. 17 for 130×300 µm Ring) | <16.5 | |||
| Parameter | Value | ||||
| Cabinet Dimensions (W × D × H), mm | Up to 5 kW: 780 × 804 × 556 6–10 kW: 1005 × 804 × 556 12–25 kW: 1005 × 804 × 806 26–40 kW: 1005 × 804 × 1055 41–50 kW: 1005 × 804 × 1770 | ||||
| Weight, kg | <1000 | ||||
| Supply Voltage, VAC | 400–480 3-phase, 50/60 Hz | ||||
| Wall-plug Efficiency, % | >45 | ||||
