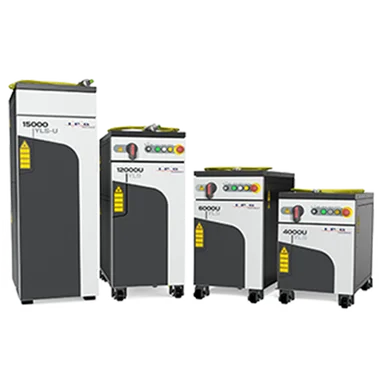

Ultra-Compact Fiber Laser Cabinets (YLS-U Series)
Product Description
The NEW YLS-U Series by IPG was developed
specifically for applications where laser system size is
critical. YLS-U lasers provide up to 15 kW average
power in the smallest form factor available on the
market. Having the same full featured interfaces and
safety electronics of the new generation IPG fiber
lasers, YLS-U design is cost/performance optimized,
making it an ideal choice for emerging markets. YLS-U
lasers can be easily integrated within cutting machines.
The lasers are packaged in hermetically sealed
cabinets with an internal dryer, enabling the laser to
be used in the harshest of production environments.
Technical Specifications
Specification
| Optical Characteristics | Value |
| Wavelength Range, nm | 1074 ±6 |
| Mode of Operation | CW/Modulated |
| Modulation Frequency, kHz | 0-5 |
| Max. Average Power*, kW | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15 |
| Power Tunability, % | 10-105 |
| Power Stability over 8 hrs, % | ±1 Typ. |
| Output Fiber Core Diameter, µm | 50, 100, 150, 200 |
| Beam Parameter Product, mm × mrad | 2.0, 3.3, 5.0, 6.0 |
| General Characteristics | Value |
| Dimensions (W × D × H), mm | 1–4 kW: 430 × 808 × 568 |
| 5–6 kW: 430 × 808 × 702 | |
| 7–12 kW: 430 × 808 × 900 | |
| 15 kW: 430 × 808 × 1185 | |
| Weight, kg | 140, 200, 250, 450 |
| Cooling | Water |
| Supply Voltage, 3-phase, 50/60 Hz, VAC | 400–460 |
| Wall-plug Efficiency, % | 40 |
