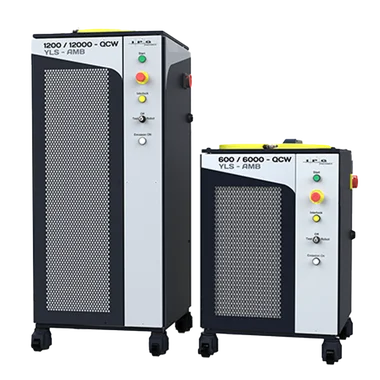

HIGH PEAK POWER Dual-Beam Fiber Lasers (YLS-QCW-AMB Series)
Product Description
The NEW YLS-QCW-AMB lasers provide the combined
benefits of adjustable mode beams (AMB) lasers with
a quasi-continuous wave (QCW) mode of operation.
These lasers are air-cooled, eliminating need for
water-cooling lines and stand-alone chiller.
Technical Specifications
Specification
| Optical Characteristics | 600/6000-QCW-AMB-AC | 900/9000-QCW-AMB-AC | 1200/12000-QCW-AMB-AC |
| Wavelength, nm | 1070 ±2 | ||
| Mode of Operation | CW or Pulsed | ||
| Maximum Repetition Rate, kHz | 2 | ||
| Total Average Power, W | 600 | 900 | 1200 |
| Maximum Peak Power, kW | 6 | 9 | 12 |
| Core Beam Average Power, W | 150 / 300 / 450 | 300 / 450 / 600 | 400 / 600 / 800 |
| Ring Beam Average Power, W | 450 / 300 / 150 | 600 / 450 / 300 | 800 / 600 / 400 |
| Maximum Pulse Energy, J | 60 | 90 | 120 |
| Pulse Duration, ms | 0.5 – 50 | ||
| Power Stability, % | ±2 | ||
| Central Fiber Core**, µm | 50 / 100 | ||
| Outer Ring Fiber Diameter**, µm | 150 or 200 (50 µm CORE) / 300 or 400 (100 µm CORE) | ||
| General Characteristics | Value | ||
| Cooling* | Forced Air (*water-cooled models available on request) | ||
| Weight, kg | 600 W: 160 900 W: 250 1200 W: 270 | ||
| Supply Voltage, VAC | 1-phase, 200 – 250, 50–60 Hz | ||
| Power Consumption, kW | 600 W: 2.3 900 W: 3.2 1200 W: 4.3 | ||
