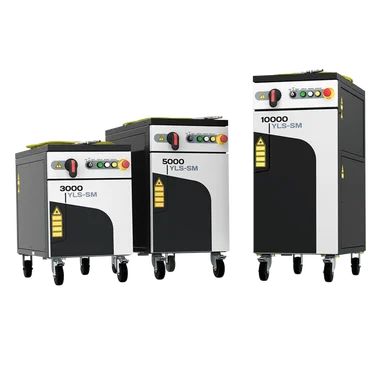

Single-Mode Fiber Laser Cabinets (YLS-SM Series)
Product Description
YLS-SM single-mode Ytterbium CW fiber laser
systems provide up to 10 kW of average power.
YLS-SM lasers feature a dynamic power modulation
range from 5% to full power up to 10 kHz with
no change in beam divergence or beam profile.
High-power single-mode fiber lasers are used
in advanced materials processing applications
requiring high power and brightness such as
cutting, welding, and drilling in materials including
highly reflective metals.
Technical Specifications
Specification
| Optical Characteristics | 1000-SM | 1500-SM | 2000-SM | 3000-SM | 4000-SM | 5000-SM | 10000-SM |
| Wavelength Range, nm | 1068 – 1080 | ||||||
| Mode of Operation | CW / Modulated | ||||||
| Modulation Frequency, kHz | 0 – 10 | ||||||
| Max. Average Power, kW | 1 | 1.5 | 2 | 3 | 4 | 5 | 10 |
| Power Tunability, % | 5 – 100 | ||||||
| Power Stability, % | ±2 | ||||||
| Beam Quality, M² | 1.1 Typ. | 1.15 Typ. | 1.2 | < 2.0 | |||
| Output Fiber Length, m | 5, 10, 15, 20 | 5, 10, 15 | 5, 10 | 5, 7 | 4 | 2 | |
| General Characteristics | 1000-SM | 1500-SM | 2000-SM | 3000-SM | 4000-SM | 5000-SM | 10000-SM |
| Cabinet Dimensions (mm) | 430 × 808 × 568 | 430 × 808 × 700 | 430 × 808 × 900 | ||||
| Weight, kg | 120 | 130 | 170 | 200 | 220 | 470 | |
| Supply Voltage, VAC | 3-phase, 400 – 480 | ||||||
| Wall-plug Efficiency, % | 40 | 33 | |||||
