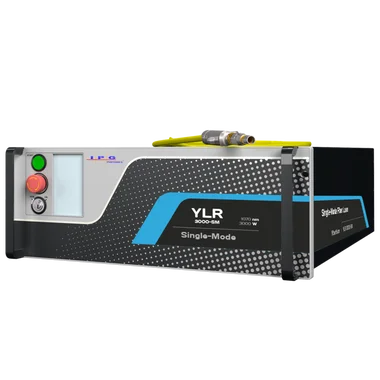

Single-Mode Fiber Laser Racks (YLR-SM Series)

Name: Single-Mode Fiber Laser Racks (YLR-SM Series)
Brand: IPG PHOTONICS
Availability: InStock

Product Description

YLR Series diode-pumped CW fiber lasers provide a
unique combination of high power, high stability, ideal
beam quality, fiber delivery, ultra-long lifetime and
record wall-plug efficiency. Single-mode output up to
3 kW may be integrated via collimator or QBH plugin connector. Standard wavelength is 1070 nm, with
other wavelengths in 1006-1080 nm available upon
request. Multi-mode output is emitted from a step index
fiber with core diameter from 50 to 200 μm, allowing
optimal performance in critical welding and additive
manufacturing applications. Air-cooled units are available
up to 1.5 kW and water-cooled units up to 4 kW.

Technical Specifications

Specification

Parameter	Specification
Central Wavelength, nm	1070 ±10
Mode of Operation	CW / Modulated
Modulation Frequency, kHz	0 – 50
Maximum Average Power, W	100 – 4000
Power Tunability, %	10 – 100
Power Stability, %	±0.5
Optical Noise, % RMS	<2, typ. 1
Output Fiber Core	Single-mode or 50, 100, 200 µm
Single-mode Beam Quality, M²	<1.1 (up to 3 kW)
Beam Parameter Product, mm·mrad	<2 @ 50 µm, <5 @ 100 µm, <10 @ 200 µm

Cabinet Dimensions (W × D × H), mm	Output Power, W	Cooling	Weight, kg	Supply Voltage, VAC
448 × 394 × 133	100	Air-cooled	<25	single-phase 50/60 Hz 100–240
448 × 500 × 177	200, 300	Air-cooled	<30	single-phase 50/60 Hz 100–240
448 × 500 × 177	400	Air-cooled	<30	single-phase 50/60 Hz 200–240
448 × 497 × 266	500, 700, 1000, 1500	Air-cooled	<50	single-phase 50/60 Hz 200–240
448 × 580 × 133	100, 200, 300	Water-cooled	<30	single-phase 50/60 Hz 100–240
448 × 580 × 133	400, 500, 600, 700, 1000	Water-cooled	<30	single-phase 50/60 Hz 200–240
448 × 580 × 133	1500	Water-cooled	<70	single-phase 50/60 Hz 200–240
448 × 798 × 177	2000, 2500, 3000, 4000	Water-cooled	<80	3-phase 50/60 Hz 400–480
