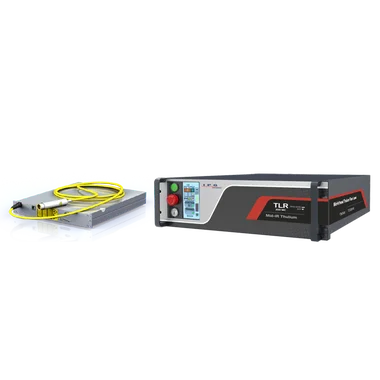

Thulium Fiber Laser Racks & Modules(TLM/TLR Series)
Product Description
IPG Thulium Fiber Lasers meet the growing demands
of the materials processing, medical, defense and
scientific markets for high power continuous wave
sources in the spectral range of 1730 to 2050 nm.
Technical Specifications
Specification
| Optical Characteristics | Specification |
| Central Wavelength Range* | 1730, 1940 or custom in 1880-2050 nm |
| Linewidth FWHM | <2 nm |
| Mode of Operation | CW/Modulated |
| Modulation Frequency | up to 1 kHz |
| Average Power | up to 200 W single-mode 500 W multi-mode |
| Power Tunability | 10-100% |
| Power Stability** | ±1% |
| Output Fiber Core Diameter | 20, 30, 50, 100, 200 µm |
| Optical Noise*** | 1% RMS |
| Beam Quality (M²) | <1.3 from 20 µm fiber core @100 W |
| General Characteristics | Specification |
| Dimensions (W×D×H) | 448×760×88 mm |
| Cooling | Water-cooled |
| Supply Voltage | 200-240 VAC, 50-60 Hz |
| Power Consumption | Typ. <900 W at 100 W Typ. <1800 W at 200 W |
