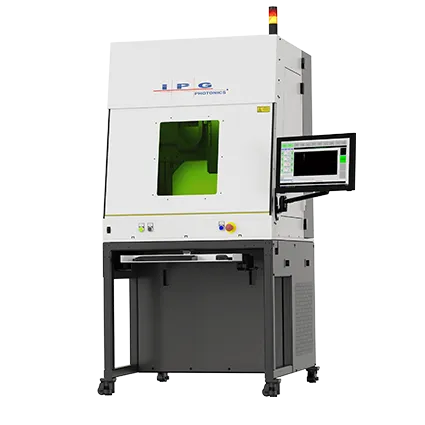

Precision Laser Workstations(3000)
Product Description
The 3000 is a Class 1 fiber laser processing
workstation designed for the medical device and
aerospace industries and configurable for highprecision welding, cutting and drilling applications.
The large, enclosed workstation can incorporate
automated part handling and support multiple
laser processes if required. Industry leading HMI2200 user-interface comes standard with a robust
library of proven and validated processing routines
that integrate with MES as well as providing realtime and historical data logging for regulatory
compliance. Hardware options include vision
systems and programmable lighting for automated
part alignment and inspection, barcode and RFID
scanners and comprehensive programmable I/O to
reduce operator dependency and increase quality
and yield.
Technical Specifications
Specification
| System | Specification |
| Laser Sources, W | Most IPG Laser sources supported |
| Beam Delivery | IPG Wobble Head, IPG Welding Head, IPG Scanning Head |
| Part Loading | Manual loading with automatic door |
| Motion Control | Three Axis, upgradable to four axes total |
| Process Gas | Single programmable gas standard, multiple gasses optional |
| Motion | Specification |
| Travel (X × Y × Z) mm | 500 × 300 × 300 |
| Max Speed (mm/sec) | 300 |
| Stage Type | Precision Machined Ballscrew Stage |
| Tooling | Threaded Aluminum Base Plate |
| General | Specification |
| Dimensions (W × D × H, mm) | 1420 × 1325 × 2285 |
| Weight, kg | 2000 |
| Process Gas | Programmable Gas Flow Control |
| Illumination & Camera | Programmable Lighting Controller with coaxial camera |
| Controls / Interface | IPG Core or HMI-2200 User Interface Industrial PC / Windows 10 Operating System 22” LCD Touchscreen, Industrial UPS |
| Safety | CDRH Class I Laser System (Complies with 21 CFR Chapter 1, Subchapter J) |
| Option | Specification |
| Process Monitoring | LDD Real Time Direct Weld Measurement |
| Motion Axes | A-Axis, B-Axis (up to five axes total) |
| Vision | Camera Vision System for automatic alignment and calibrations |
| Illumination | Computer Controlled Illumination |
| Power Measurements | On-Target Power Meter Pulse Energy Detector |
| Gas Handling | Programmable Gas Control |
| Data Input | Remote Jog Box Barcode Scanner RFID Reader |
| Beam Delivery Options | Automated Dual Collimator, Multiple Lens configuration |
| Remote I/O | Remote I/O |
| 21CFR Part 11 Software | 21CFR Part 11 Software |
| Factory Integration | Factory MES Software |
| Custom Automation | Custom Automation Available |
