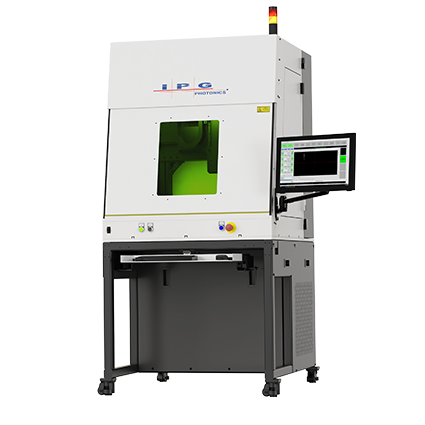

Precision Laser Workstations(2500)
Product Description
The 2500 is a turnkey system configured for fast
laser processing deployment for medical device and
aerospace industry manufacturers. Designed for use
with a variety of rack-mounted IPG laser sources and
process heads, the 2500 offers high productivity for
cutting, welding, cleaning, and marking applications.
The 2500 is equipped with high-accuracy stages
for precision applications. With a compact design
and flexible configuration options, the system is
easily integrated onto the manufacturing floor for
prototyping as well as full-scale production.
Technical Specifications
Specification
| System | Specification |
| Laser Sources, W | Most IPG Laser sources supported |
| Beam Delivery | IPG Wobble Head, IPG Welding Head, IPG Scanning Head |
| Part Loading | Manual loading with automatic door |
| Motion Control | Up to four axes coordinate motion, five axes total |
| Process Gas | Single programmable gas standard, multiple gasses optional |
| Motion | Specification |
| Travel (X × Y × Z) mm | 300 × 200 × 200 |
| Max Speed (mm/sec) | 300 |
| Stage Type | Precision Machined Ballscrew Stage |
| Tooling | Threaded Aluminum Base Plate |
| General | Specification |
| Dimensions (W × D × H, mm) | 970 × 1110 × 2150 |
| Weight, kg | 900 |
| Process Gas | Programmable Gas Flow Control |
| Illumination & Camera | Programmable Lighting Controller with coaxial camera |
| Controls / Interface | IPG Core or HMI-2200 User Interface Industrial PC / Windows 10 Operating System 22” LCD Touchscreen, Industrial UPS |
| Safety | CDRH Class I Laser System (Complies with 21 CFR Chapter 1, Subchapter J) |
| Option | Specification |
| Process Monitoring | LDD Real Time Direct Weld Measurement |
| Motion Axes | A-Axis, B-Axis (up to five axes total) |
| Vision | Camera Vision System for automatic alignment and calibrations |
| Illumination | Computer Controlled Illumination |
| Power Measurements | On-Target Power Meter Pulse Energy Detector |
| Gas Handling | Programmable Gas Control |
| Data Input | Remote Jog Box Barcode Scanner RFID Reader |
| Beam Delivery Options | Automated Dual Collimator, Multiple Lens configuration |
| Remote I/O | Remote I/O |
| 21CFR Part 11 Software | 21CFR Part 11 Software |
| Factory Integration | Factory MES Software |
| Custom Automation | Custom Automation Available |
