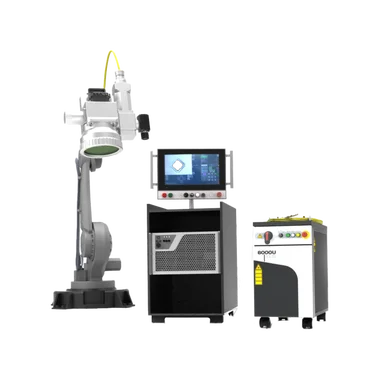

Integrated Laser Welding System
Product Description
IPG’s ILWS is a fully-integrated, turnkey remote
laser welding equipment set. Comprising a zeromaintenance laser with laser processing head
optimized for the application, and dedicated system
controller, the system includes a user-friendly HMI and
system control software to provide high-speed, highprecision 2D welding of metal parts.
Technical Specifications
Specification
| Characteristic | Specification | |
| Integrated HMI Full HD Touch Screen Size | 15.6” Wide | |
| Teleservice | LAN | |
| Operating Ambient Temperature (°C) | 5 to 50 | |
| Storage Temperature without Water (°C) | -10 to 60 | |
| Cabinet Dimensions (W × D × H, mm) | 19” × 6U rack mountable × 767 mm | |
| Operating Voltage, 3 phase | 110–230 Vac + PE @50–60 Hz | |
| Signal Interfaces | ProfiNet, ProfiBus, EtherCat, EtherNet IP | |
| Laser | YLS | YLR |
| Integrated HMI Full HD Touch Screen Size | ✔ | ✔ |
| Laser Wavelength (nm) | 1070 | 1070 |
| Vision | Specification | |
| Camera Sensor (Mpixels) | 2 | |
| Camera Resolution (µm/pixel) | Max 25 with 400 mm focal length | |
| Focus Adjustment | By adaptive lens | |
| Field-of-View (mm × mm) | 15 × 25 with 400 mm focal length | |
| Illumination | 2× Bars or 2× Annular Spot | |
| Illumination Wavelength (nm) | 625 | |
| Beam | Mid-Power 2D Scanner Head | HP 2D Scanner Head |
| Maximum Power (kW) | 2 | 12 |
| Working Area (mm) | 80×80 / 160×160 | 110×110 / 200×200 |
| Working Distance (mm) | 135 / 245 | 261 / 415 |
| Weight (kg) | 6 | 14 |
| Configuration | Vertical / Horizontal | Vertical |
| Repeatability (rms) | < 5 µrad | < 5 µrad |
