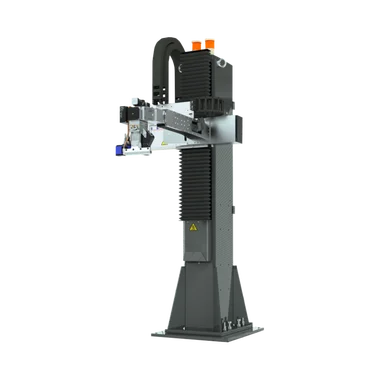

TPS-6000 Tube Laser Welding System
Product Description
IPG TPS 6000 is an integrated welding system for
the production of tubes and profiles. Embodying
an IPG welding head and seam tracking unit
integrated with a precision 3-axis motion platform,
the TPS 6000 provides high integrity, oxidationfree, low HAZ seam welds on carbon-steel and
stainless steel continuously-formed tubes with
wall-thickness from 0.7 to 4 mm.
Technical Specifications
Specification
| Category | Specification |
| Laser Power Options | CW Fiber Lasers up to 12 kW CW Power |
| Beam Delivery Options | - IPG's FLW-D50 Welding Head - Selectable Collimator / Focus Lenses - Electronic Control of Shield Gas Flow (Optional) - Water-cooled Optics - Side Camera for Seam Tracking - Coaxial Camera for Beam Centering & Process Inspection |
| Motion System | 3 PLC Controlled Axis: - X-Axis (Parallel to Tube): 300 mm - Y-Axis (Perpendicular to Tube): 100 mm (Controlled by Seam Tracker) - Z-Axis (Vertical): 750 mm |
| Controls / Interface Options | Stand-alone Industrial PC Controller Color Touchscreen Display for Imaging & HMI Control |
| Communications | - Interface to Customer’s Equipment Controller via Field Bus or Analog Signals - Laser Interlock Connections for Integration with Customer’s Safety Cell |
| Dimensions (mm) | TPS: 950 × 1450 × 2050 Laser: 856 × 806 × 1106 (depending on laser selection) |
| Weight | 515 kg / 1135 lbs |
