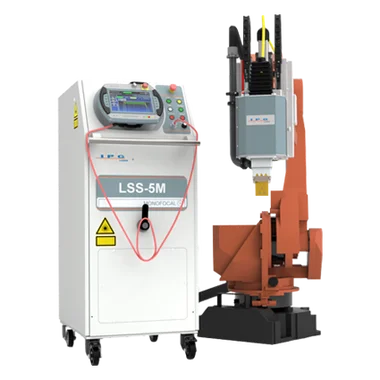

Laser Seam Stepper
Product Description
IPG Laser Seam Stepper is an automated laser
welding system that is faster and lower-in-cost than
traditional resistance spot welding, while producing
higher strength weld joints. It is designed for welding
of car body parts and flat panels such as consumer
appliances. IPG's LSS-5M welding head includes
linear and wobble scanning optics, together with a
programmable and monitored pressure piece. The
LSS-Picker is configured for single-side part access,
while the LSS C-Gun includes a lower arm to provide a
clamping force of up to 3 kN (675 lbs). The associated
LSS Controller is a single-cabinet design that includes
the fiber laser, chiller, mobile panel and integrated
safety controller.
Technical Specifications
Specification
| Specification | YLS-15000-SM3 | YLS-20000-SM4 |
| Mode of Operation | CW / Modulated | |
| Wavelength, nm | 1070 | |
| Output Power Main Beam, kW | up to 3.5 | up to 3.0 |
| Output Power Side Beam, kW | N/A | 2 × 0.25* |
| Spot Size (Depends on Fiber & Optics), mm | 0.250 – 0.6 | |
| Power Consumption 3500 W Power, Laser Duty Cycle 30% (with chiller), kW | 3.5 | |
| Dimensions (L × W × H), mm | 608 × 808 × 1335 | |
| Cooling | Water-water with Integrated Chiller or Water-air without Integrated Chiller | |
| Weight, kg | 250 | |
| Specification | C-Gun | Picker |
| Adjustable Clamping Force (Z-hub), kN | 0.8 – 3.0 | 0.3 – 1.0 |
| Max. Traversing (Z-hub), mm | 140 | N/A |
| Max. Welding Seam Length, mm | 40 | |
| Wobble Amplitude, mm | ±1 | |
| Wobble Frequency, Hz | 0 – 30 | |
| Welding Speed, mm/s | up to 60 | |
| Compressed Air Consumption (Welding), l/min @ 6 bar | 250 | |
| Weight, kg | 63 | 47 |
