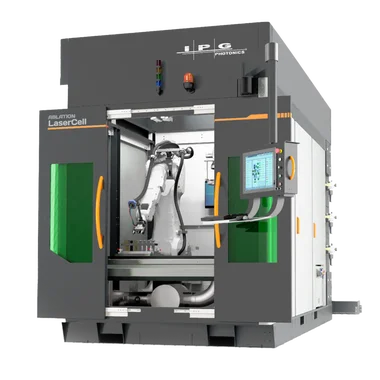

LaserCell 4000
Product Description
High-Speed Repeatable Cleaning & Coating Removal
Automated & Optimized Laser Processing
Eliminates the use of Abrasives or Chemicals
Simplifies EHS Compliance
• Can be used on any manufacturing floor
• Laser and beam delivery optimized for the process
• 6-axis robot provides part handling and motion
• Integrated fume/debris collection system
• Industrial robot and electronics controls
Technical Specifications
Specification
| Category | Parameter | Specification |
| Laser Source | Type | Continuous Wave, Quasi-Continuous Wave, Pulsed Nanosecond & Ultrafast Fiber Laser Options |
| Beam Delivery | System | IPG High Power Scan Head. Optics selected to suit application. |
| Maximum Part Size | Dimensions | From 165 x 300 x 600 mm up to 1000 mm diameter x 1500 mm long, depending on System Configuration. See Part Loading Options |
| Part Loading | Method | Depending on System Configuration. Part Loading Options |
| Part Tooling | Included | Custom-designed part tray and robot gripper included with system |
| Part Handling Robot | Type & Specs | Industrial 6-axis robot. Min reach 1800 mm, Max Payload 25 kg. Positioning repeatability ± 0.025 mm (0.0001 ins). Specific robot selections may be available at additional cost. |
| Machine Enclosure (L x W x H) | Main Workcell | 2000 x 2200 x 3000 mm (78.7 x 86.6 x 118.1 in) |
| Laser Unit | 960 x 780 x 560 mm (37.8 x 30.7 x 22.0 in) | |
| Chiller | 626 x 807 x 1862 mm (24.6 x 31.8 x 73.3 in) | |
| System Control | Controller | Industrial PLC controller with front swing arm mounted HMI and keyboard running IPGCore software |
| Safety Systems | Comprehensive door interlock and E-Stop systems. Integrated work chamber heat sensor. | |
| Power Measurement | Equipment | Integrated laser power meter |
| System Calibration | Process | Automated calibration using the power meter and Master Calibration Artifact |
| Process Assist Mist Dispenser | System | Programmable misting system with adjustable spray nozzles for liquid coating of parts. Includes an 11.5 liter (3 gallon) fluid reservoir. |
| Fume Extraction | System & Performance | Fume extraction module using a downdraft table. Efficiency 95% on 0.3 micron mist/smoke. Air exchange rate 12,750 l/min (450 cfm). Compatible with liquid/mist processes. |
| Software | Control Software | HMI using IPGCore multi-platform interface and process control software with embedded PCScan deflection controller |
| Pre-defined Settings | Nine (9) pre-defined application-specific process parameter sets | |
| Positioning Software | Robot-agnostic positioning software using solid model as input | |
| Application Compatibility | Processes | Pre and Post-process cleaning for Welding, Brazing, Diffusion bonding, Adhesive bonding. Surface preparation for bond coat EB-PVD TBC & Atmospheric Plasma Spray (APS) TBC applications. TBC and BC coating removal for part repair, OEM part rework and tooling cleaning. |
| Facilities Required | Power | 480 VAC, 3 Phase, 60 Hz, 110 Amps |
| Air Supply | Filtered moisture-free compressed air, 550 kPa (80 psi) minimum | |
| Operating Environment | Temperature | 0°C to 43°C (32 to 110°F) |
| Humidity | Relative Humidity < 75%, No dew or frost | |
| Regulatory Standard Compliance | Standards | OSHA 29 CFR 1910, ANSI/RIA 15.06-2, ISO 10218-2, NEC UL 508A, ANSI ASC Z136.1, NFPA 70, NFPA 79 |
