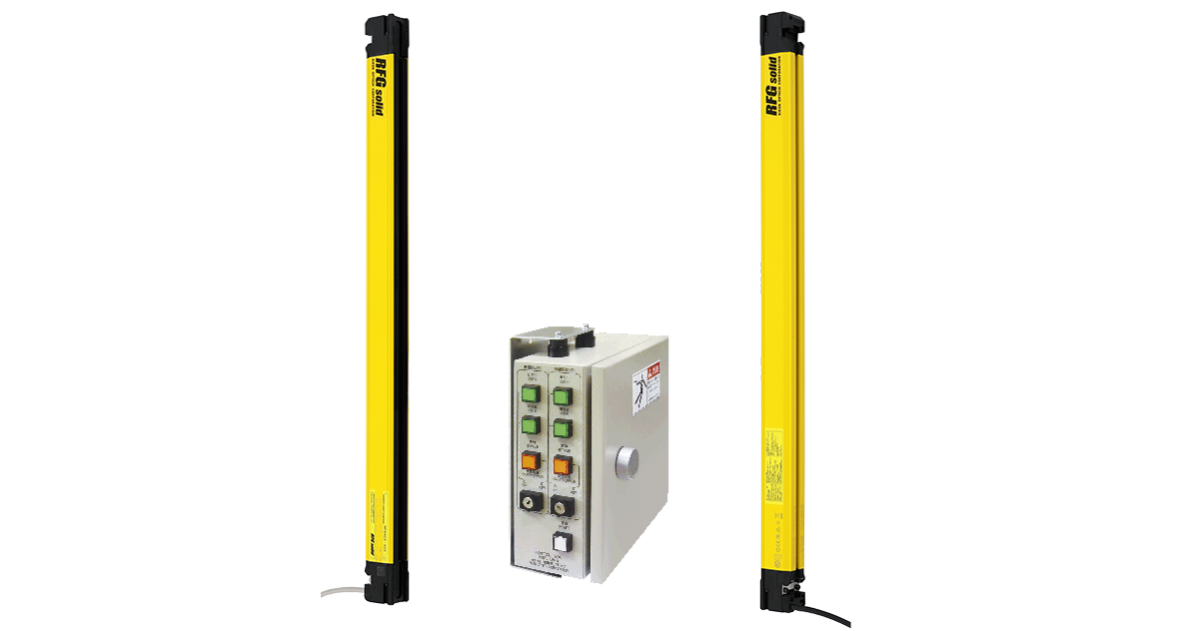

RFG
Product Description
Manufacturing sites are now required to respond to globalization and flexible production. The RFG series is a Safety light curtain that realizes a significant improvement in work efficiency while thoroughly pursuing safety with a safety design and specifications that conforms to international standards, flexibly responds to various work contents, and is equipped with everything required of a safety light curtain. This series contributes to the construction of safety systems at any manufacturing site.
Technical Specifications
Specification
| RFG414－□□□ | RFG425－□□□ | RFG445－□□□ | |
| Number of beams | 15～199 | 8～124 | 6～38 |
| Protective height | 140～1980mm | 140～2460mm | 200～1480mm |
| Beam spacing | 10mm | 20mm | 40mm |
Minimum object sensitivity （MOS） | 14mm | 25mm | 45mm |
| Detection distance | 0.3～10 m | 0.3～20 m | 0.3～20 m |
