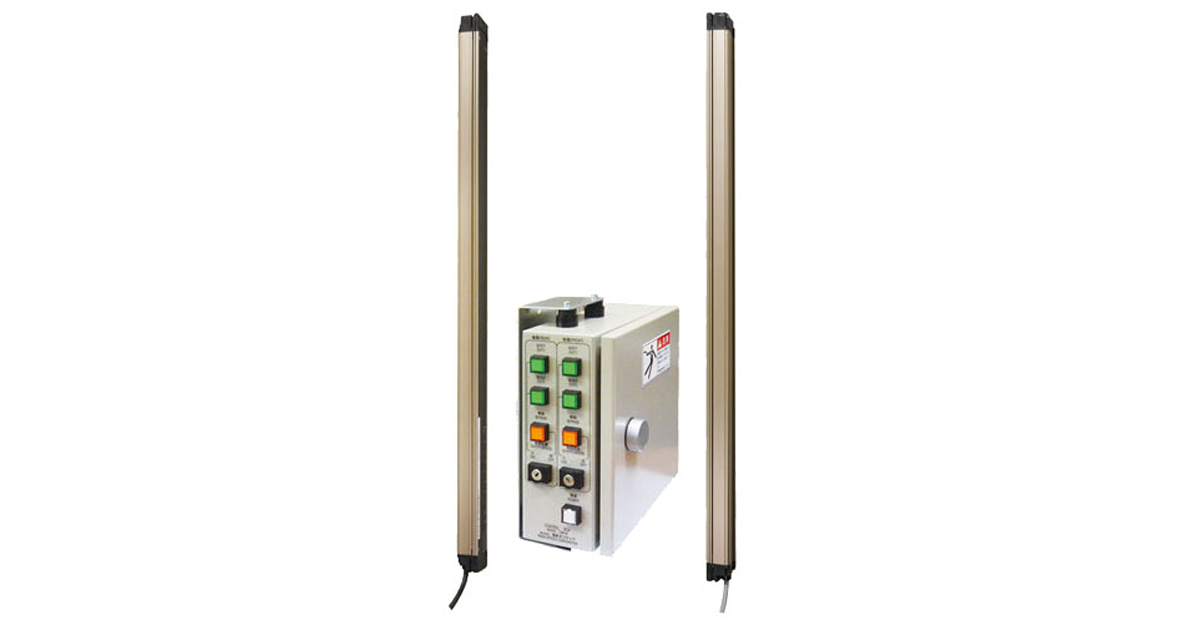

RPZ
Product Description
This direct-projection safety light curtain for press machines has the highest-level safety based on a design compliant with
international standards, advanced basic performance including enhanced noise resistance and is equipped with a series
connection function and error display function in the event of a problem, making it suitable for a variety of work sites.
Technical Specifications
Specification
| RPZ425－□□□X2 | RPZ425－□□□X4 | |
| No. of Beams | 8 ~ 102（Protection Height:140～2020mm） | |
| Beam Spacing | 20mm | |
| Minimum Object Sensitivity (MOS) | 25mm | |
| Detection Distance | 0.2 ~ 4m | 0.2 ~ 7m |
| Response Time | ON→OFF: 15ms, OFF→ON: 70ms * When Control Box is connected: ON→OFF: 25ms, OFF→ON: 90ms | |
| Input voltage | 90VAC～240VAC (When control box is used) (Power Supply for Emitter/Receiver only: 24VDC±20％) | |
| Power Consumption | Emitter: 41mA～101mA, Receiver: 41mA～67mA (Control Box: CB6-S: 16.8W, CB6-W: 30W) | |
| Output Contact (CB6) | 2A, 1B Contact Capacity: 250VAC 3A | |
| Key Switch Output Contact (CB6) | 1A, 2B Contact Capacity: 220VAC 0.7A (Inductive Load), 1.0A (Resistance Load) | |
| Light Source | Infrared LED (wavelength: 870nm) | |
| Effective Aperture Angle | Within ± 5° (when detection distance is 3m or more) | Within ± 2.5°(when detection distance is 3m or more) |
| External Diagnostic Function | When Test-input line or LA-terminal (in case with Control Box) is: (Vs-3V)～Vs: Emitter OFF, 0～1/2V or open: Emitter ON. * Vs: a voltage value in operating environment. | |
| Ambient Temperature | During operation: -10～55℃ (No freezing), During storage: -30～70℃ | |
| Ambient Humidity | During operation: 35～85RH (No freezing), During storage: 35～95RH | |
| Ambient Light Intensity | Incandescent light: 3,000lx or less (Light intensity at the receiver surface), Sunlight: 10,000lx or less (Light intensity at the receiver surface) | |
| Insulation Resistance | 20Mohm or more (for 500VDC) | |
| Withstand Voltage | 1,000VAC(Sensor), 1,500VAC (Control Box), 50/60Hz, 1min. | |
| Degree of Protection | Emitter/Receiver: IP65, Control Box: IP54 (IEC60529) | |
| Vibration Resistance | Malfunction Durability: 10~55Hz, Double-amplitude: 0.7㎜,X, Y,Z directions: 20 sweeps | |
| Shock Resistance | Malfunction Durability: 100m/s2, {10G}, X,Y, Z directions: 1,000 times | |
Standard Compliance (Sensor only) | X2-type: IEC61496-1 type-2 ESPE & IEC61496-2 type-2 AOPD IEC61508-1～-7 (SIL1), ISO13849-1: 2006 Cat. 2 PLc X4-type: IEC61496-1 type-4 ESPE & IEC61496-2 type-4 AOPD IEC61508-1～-7 (SIL3), ISO13849-1: 2006 Cat. 4 PLe | |
