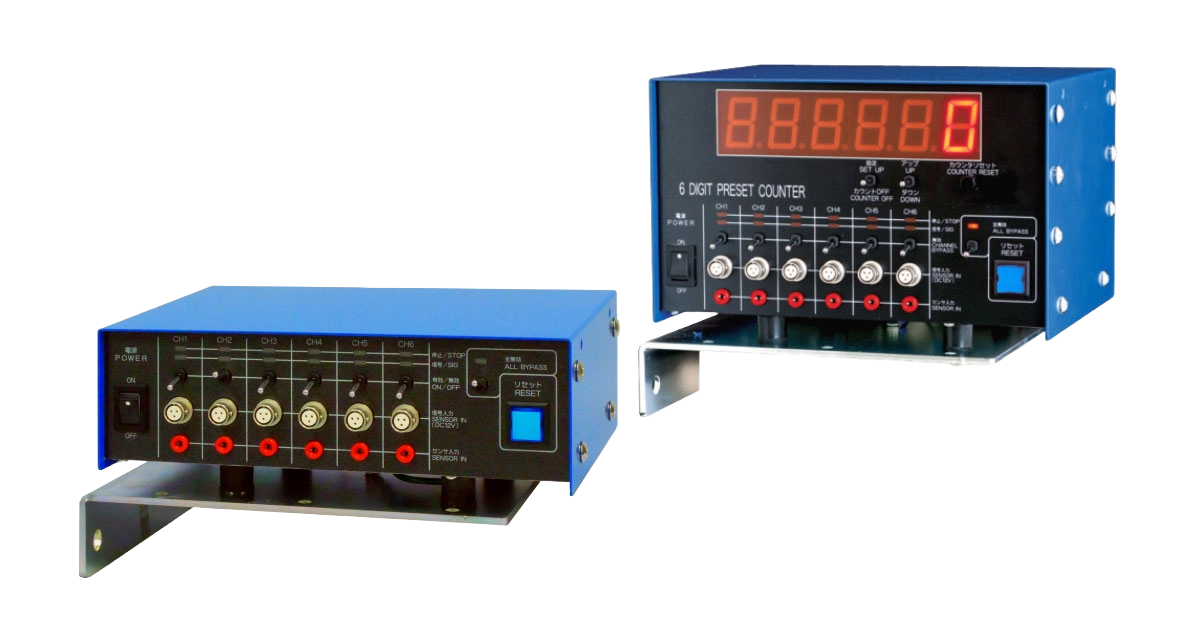

PMC-3
Product Description
PMC3 is an indispensable multi-functional Malfunction Detector for automatic progressive press operation which
achieves high operability fully to meet diversified manufacturing process, thus promotes quality control and
improvement of productivity.
*CLT (Liquid-Crystal Display Unit) has been discontinued. We apologize for your inconvenience.
Technical Specifications
Specification
| Power Supply and Output section | Power supply | 100-240 VAC, 50/60Hz |
| Power consumption | 10W or less | |
| Output contact | 1A, 1B (emergency stop output, auxiliary output) | |
| Output contact Capacity | 250 VAC or less, max.3A Cosφ=1 | |
| Detecting section | No.of channels | 6 channels |
| Sensor input | 6 channles | |
| Timing signal input | Independent timing signal for 6 channels and common timing signal for 1 channel (switchable from NPN to PNP and vice versa) | |
| Other Inputs | External reset, muting input and auxiliary input(switchable from NPN to PNP and vice versa) | |
| Display section | 5 X 2 two color LEDs: 6 pcs.for display of signal input, 6 pcs.for display of fault detection(stop state) and 1 pc.for display of all bypass Counter Unit: 7-segment LED | |
| Communication section (link terminal, 8P modular) | Communication standard | RS-485 |
| Communication Specifications | Baud rate: 76,800bps Data bits: 8 bits Stop bits: 1 bit Parity: None | |
| Others | Response time | Max. 1 ms for each input |
| Temperature Range | Working:-10℃-50℃(non freezing) / Storage:-20℃-75℃ | |
| Humidity range | 10-85%RH (at wet bulb temperature of 29℃ or less, non condensationn) | |
| Options | Counter Unit | |
