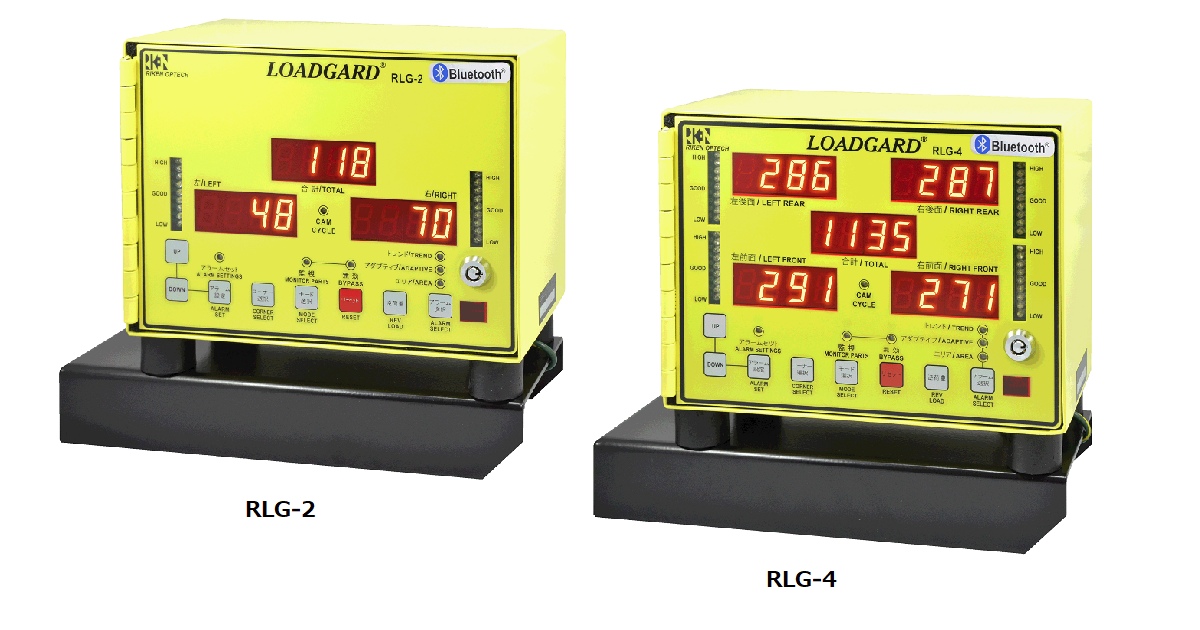

RLG
Product Description
RLG series load monitor has the function of detecting the press load with a strain gauge. It displays the accurate load during press processing, and output stop signals and stops a press machine immediately when abnormality is detected. Multiple detection modes incorporated cannot be ignored when there are eccentric loads for each stroke, and furthermore, load monitoring extends the life of dies, prevents friction and wear of presses, also promotes quality control and rationalization.
Technical Specifications
Specification
| Electrical Specifications | Power supply | 90-264 VAC |
| Current consumption | 100mA-220 VAC / 115mA-200 VAC | |
| No.of channels | 2 channels(RLG-2) / 4 channels | |
| A/D conversion method | 12 bit | |
| Normal mode rejection | 50db at 2,000 gain (between + innput and – input) | |
| Calibration | Manual calibration | |
| Isolation | 500VDC continuous between inputs and chassis ground | |
| Environmental Specificatins | Working temperature | 0°C-60°C(32°F-140°F) |
| Input Specifications | Input type | Strain gauge (350Ω, 700Ω) |
| Input impedance | 1K | |
| Low range gain | Max. gain 1176 | |
| Cal. resistor(140k-ohm) | Min. gain 54 | |
| High range gain | Max. gain 6959 | |
| Cal. resistor(1meg-ohm) | Min. gain 347 | |
| Display resolution | Up to 0.1% of full scale | |
| Overall module accuracy | 1% of full scale | |
| A/D sample rate | 100 microseconds | |
| Output Specifications | Alarm relay | Dry contact (10A 240VAC) |
