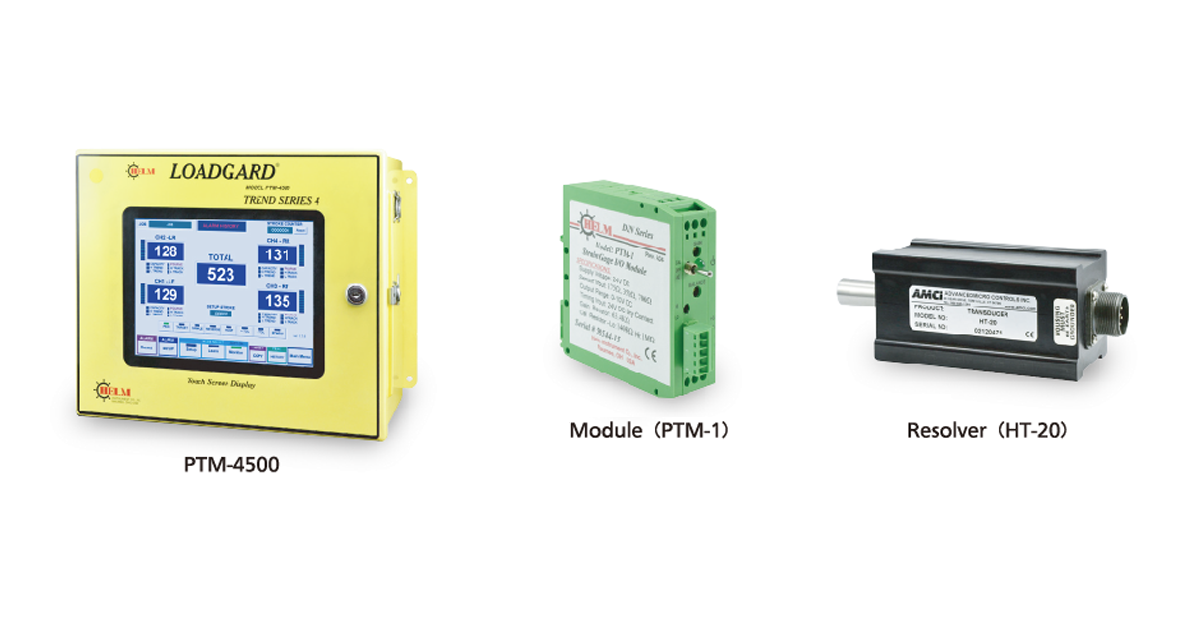

PTM
Product Description
In order to improve and stabilize the quality of the products, it’s necessary to continuously monitor the optimal load. Excessive load generates not only defective products, but damage of the machine and the dies, and becomes a cause of deterioration in the cost performance due to waste of time and materials. In order to prevent such problems, the load monitor outputs a stop signal to the press machine, when the load exceeds the monitoring range that has been set in advance.
PTM series load monitor is the most advanced load monitoring system offered by the company. Utilizing smart-sampling alarm control and statistical process control, this system helps to protect machines and quality control.
Technical Specifications
Specification
| Electrical Specifications | Power Input Range | 90～240 VAC |
| Current Consumption | 3.125A | |
| Number of Channels | ２ch=(PTM-2300) / ４ch(PTM-4500) | |
| A/D Conversion Method | 16 bit | |
| Environmental Specifications | Operating Temperature | 0℃ to 50℃（32°F to 122°F） |
| Input Specifications | Type of Input | Strain Gauge（175ohm、350ohm、700ohm） |
| Display Resolution | Up to 0.1% of Full Scale | |
| Overall Unit Accuracy | Within 1% of Full Scale | |
| A/D Sample Rate | 333μsec. | |
| Supports maximum SPM | 200（Resolver） | |
| Output Specifications | Output contact | 1A contact capacity : 240VAC 10A |
