YOSHIKAWA
Click to zoom • Drag to pan

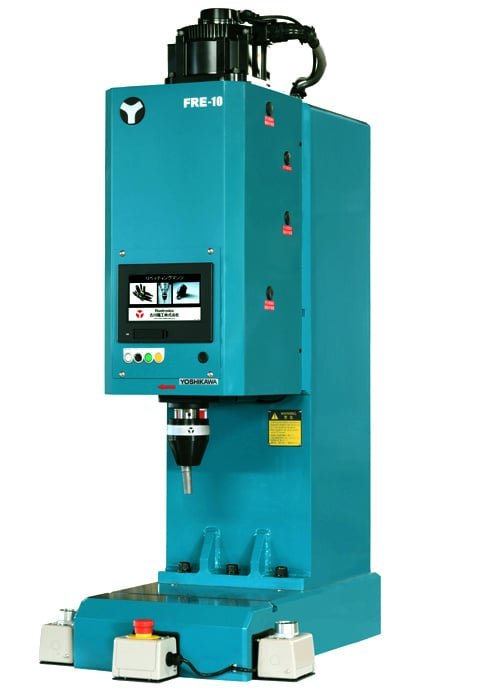

FRE-10
Product Description
This is an electric servo type that does not use air or hydraulic pressure as a power source. It is a new type of riveting machine developed with an eye on the future.
This machine is also suitable for working on extremely small precision parts and is environmentally friendly.
Technical Specifications
Specification
| Riveting Capacity | φ1.0～φ8mm Mild steel | Spindle motor | 0.75kW AC200V |
| Maximum pressure | 12kN (1224kgf) | Power Source | 3φ AC200V 50/60Hz 11kVA |
| Cylinder Stroke | MAX 200mm | Installation floor size | W370xD725mm |
| Working Time Timer | 0～9.9sec | Height | 1,310 mm |
| Servo motor for crimping | 2.9kw AC200V | weight | 470 kg (body) |
