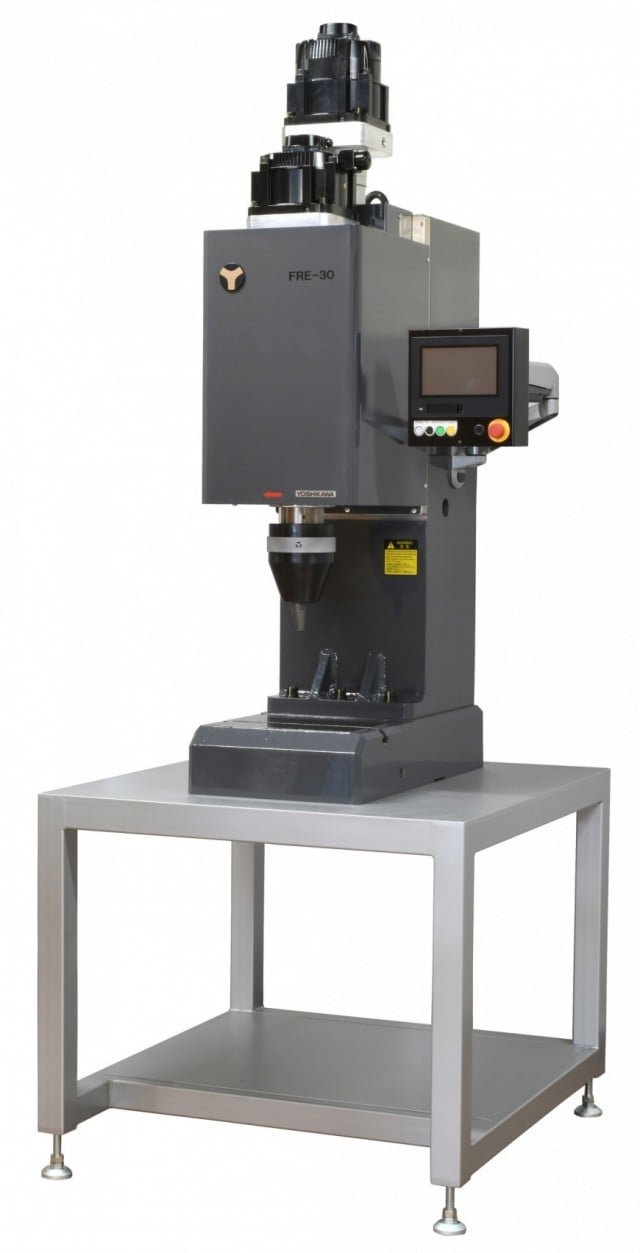

FRE-30
Product Description
This is an electric servo type that does not use air or hydraulic pressure as a power source. It is a new type of riveting machine developed with an eye on the future.
This machine is also suitable for working on extremely small precision parts and is environmentally friendly.
Technical Specifications
Specification
| Riveting Capacity | φ6～φ16mm Mild steel | Spindle motor | 3.0kw AC200V |
| Maximum pressure | 35kN (3,570kgf) | Power Source | 3φ AC200V 50/60Hz 17kVA |
| Cylinder Stroke | MAX 100mm | Installation floor size | W600xD1,040mm |
| Working Time Timer | 0～9.9sec | Height | 2,299 mm |
| Servo motor for crimping | 3.0kw AC200V | weight | 900kg (Main unit 700kg, stand, control panel 200kg） |
