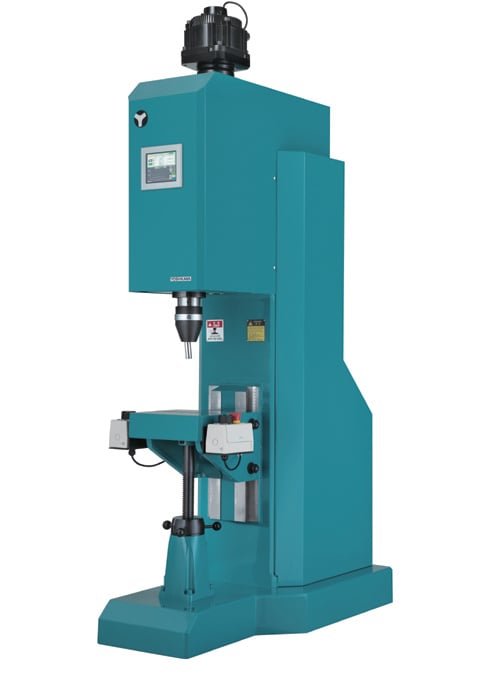

FRE-20
Product Description
This is an electric servo type that does not use air or hydraulic pressure as a power source. It is a new type of riveting machine developed with an eye on the future.
This machine is also suitable for working on extremely small precision parts and is environmentally friendly.
Technical Specifications
Specification
| Riveting Capacity | φ4～φ12mm Mild steel | Spindle motor | 1.3kw AC200V |
| Maximum pressure | 20kN (2,040kgf) | Power Source | 3φ AC200V 50/60Hz 17kVA |
| Cylinder Stroke | MAX 100mm | Installation floor size | W600xD1,040mm |
| Working Time Timer | 0～9.9sec | Height | 2,037 mm |
| Servo motor for crimping | 2.9kw AC200V | weight | 850kg (main body), 250kg (machine base, control panel) |
