ATLAS COPCO
Click to zoom • Drag to pan

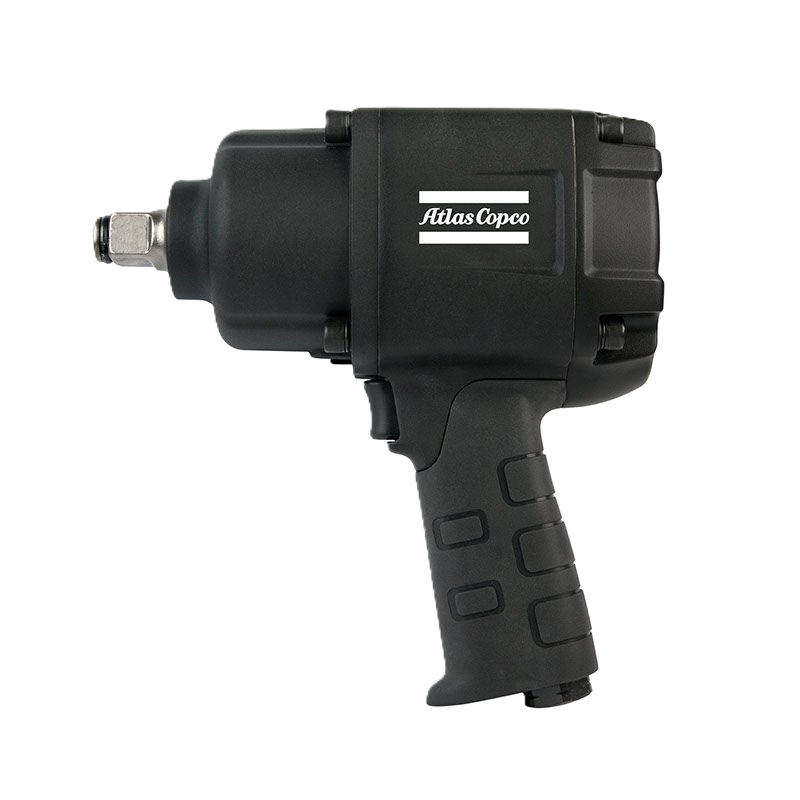

W2420
Product Description
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Technical Specifications
Specification
| Category | Specification |
| Torque | |
| Max Torque | 1,254 ft-lb (1,700 Nm) |
| Torque Range | 479-959 ft-lb (650-1,300 Nm) |
| Speed | |
| Free Speed | 5,600 RPM |
| Air Specifications | |
| Air Consumption | 27 l/s (0.95 ft³/s) |
| Max Working Pressure | 90 psi (6.2 bar) |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | ISO 11148-6 |
| Design & Functions | |
| Professional Grade (PRO) | Yes |
| Clutch Type | Twin Hammer |
| Noise & Vibrations | |
| Sound Power | 105 dB(A) |
| Sound Pressure | 94 dB(A) |
| Vibration Level | 9.73 m/s² (31.9 ft/s²) |
| Dimensions & Weight | |
| Air Inlet | 3/8" NPT |
| Bolt Capacity | 0-30 mm (0-1.18") |
| Length | 229 mm (9.02") |
| Recommended Hose | 13 mm (1/2") |
| Drive Size | 3/4" square drive |
| Weight | 11.9 lb (5.4 kg) |
