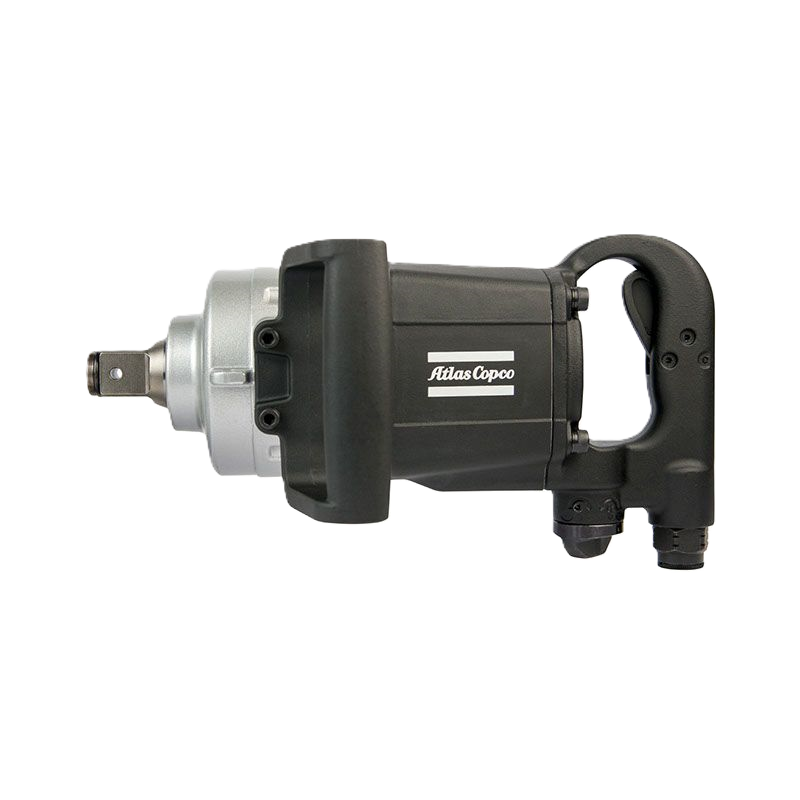

W2428
Product Description
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Technical Specifications
Specification
| Category | Specification |
| Torque Performance | |
| Maximum Torque | 2,065 ft-lb (2,800 Nm) |
| Torque Range | 590-1,180 ft-lb (800-1,600 Nm) |
| Speed | |
| Free Speed | 5,000 RPM |
| Pneumatic System | |
| Air Consumption | 50 l/s (1.77 ft³/s) |
| Maximum Working Pressure | 90 psi (6.2 bar) |
| Certifications | |
| EAC Certification | Yes |
| EU Compliance | 2006/42/EC |
| International Standards | ISO 11148-6 |
| Design Features | |
| Professional Grade | Yes (PRO Series) |
| Impact Mechanism | Single Hammer Clutch |
| Noise & Vibration | |
| Sound Power Level | 109 dB(A) |
| Sound Pressure Level | 98.4 dB(A) |
| Vibration Emission | 10.67 m/s² (35 ft/s²) |
| Physical Dimensions | |
| Air Connection | 1/2" NPT |
| Fastener Capacity | 0-32 mm (0-1.26") |
| Tool Length | 345 mm (13.58") |
| Recommended Hose | 19 mm (3/4") |
| Drive Size | 1" Square Drive |
| Tool Weight | 23.15 lb (10.5 kg) |
