ATLAS COPCO
Click to zoom • Drag to pan

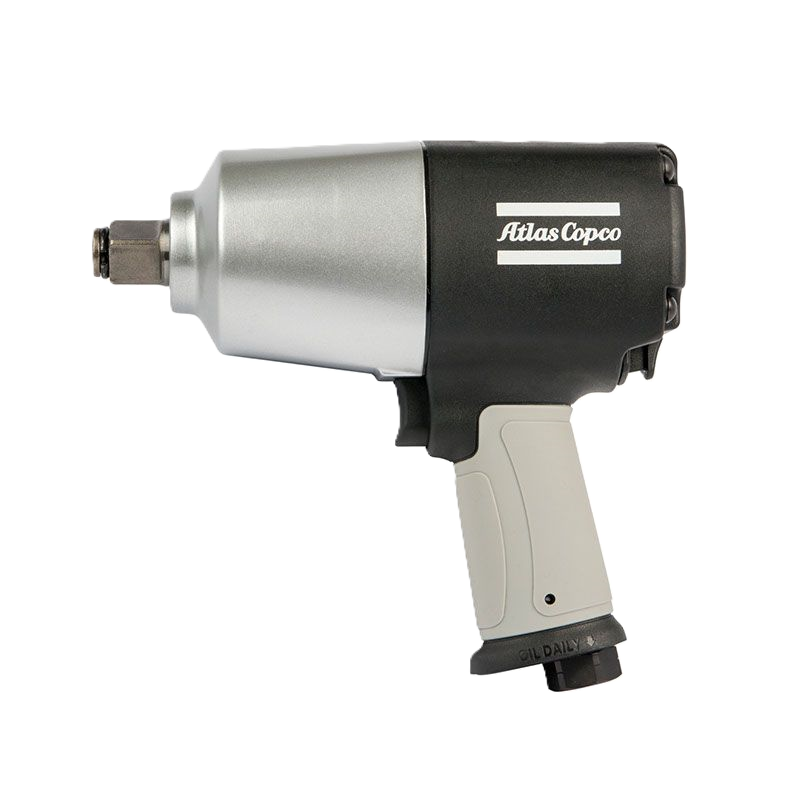

W2920
Product Description
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Technical Specifications
Specification
| Category | Specification |
| Torque Performance | |
| Maximum Torque | 1,106 ft-lb (1,500 Nm) |
| Torque Range | 221–1,070 ft-lb (300–1,450 Nm) |
| Speed | |
| Free Speed | 5,500 RPM |
| Pneumatic System | |
| Air Consumption | 27 l/s (0.95 ft³/s) |
| Maximum Working Pressure | 90 psi (6.2 bar) |
| Certifications | |
| EAC Certification | Yes |
| EU Compliance | 2006/42/EC |
| International Standards | ISO 11148-6 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-6 |
| Design Features | |
| Professional Grade | Yes (PRO Series) |
| Clutch Type | Twin Hammer |
| Noise & Vibration | |
| Sound Power Level | 107 dB(A) |
| Sound Pressure Level | 96 dB(A) |
| Sound Standard | ISO 15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Standard | ISO 28927-2 |
| Vibration Uncertainty | 1.5 m/s² |
| Vibration Emission | 10.2 m/s² |
| Physical Dimensions | |
| Air Connection | 3/8" NPT |
| Fastener Capacity | 0–30 mm (0–1.18") |
| Tool Length | 218 mm (8.58") |
| Recommended Hose | 13 mm (1/2") |
| Drive Size | 3/4" Square Drive |
| Tool Weight | 7.14 lb (3.24 kg) |
