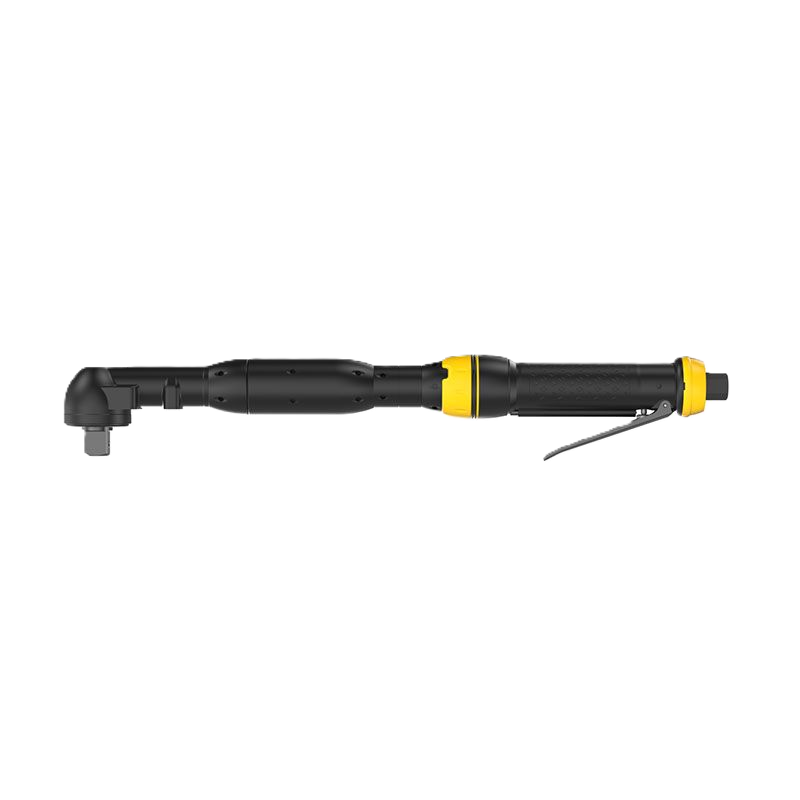

LTV39-2 R200-20
Product Description
The Angle Nutrunner LTV range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening complemented by advanced ergonomic design the nutrunner ensures an unmatched level of productivity. Its lightweight design, durable long-life grip and low reaction force make it exceptionally easy to work with.
Technical Specifications
Specification
| Category | Specification |
| Torque Performance | |
| Max Torque (6.3 bar, Soft Joint) | 148 ft-lb (200.7 Nm) |
| Min Torque (6.3 bar, Soft Joint) | 82 ft-lb (111.2 Nm) |
| Torque Range | 81–147 ft-lb (109.8–199.3 Nm) |
| Speed | |
| Free Speed | 120 RPM |
| Pneumatic System | |
| Air Consumption at Free Speed | 34 cfm (0.96 m³/min) |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Certifications | |
| ATEX Certified | No |
| EAC Certification | Yes |
| EU Compliance | 2006/42/EC |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Design Features | |
| Model Type | Angle |
| Output Type | Square, Male |
| Reversible | Yes |
| SCIP Code | 512325c7-97f9-4ab7-9ad4-7c27c003eb75 |
| Shut-off | Yes |
| Noise & Vibration | |
| Sound Power Level | 92 dB(A) |
| Sound Pressure Level | 81 dB(A) |
| Sound Standard | ISO 15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Standard | ISO 28927-2 |
| Vibration Uncertainty | — |
| Vibration Emission | <2.5 m/s² |
| Physical Dimensions | |
| Air Connection | 1/4" NPT |
| Angle Head Centre to Side | 27 mm (1.06") |
| Angle Head Height | 47 mm (1.85") |
| Fastener Capacity (Bolt Size) | M14 |
| Tool Length | 505 mm (19.88") |
| Output Size | 3/4" |
| Recommended Hose | 10 mm (3/8") |
| Drive Size | 3/4" Square Drive |
| Tool Weight | 6.6 lb (3 kg) |
