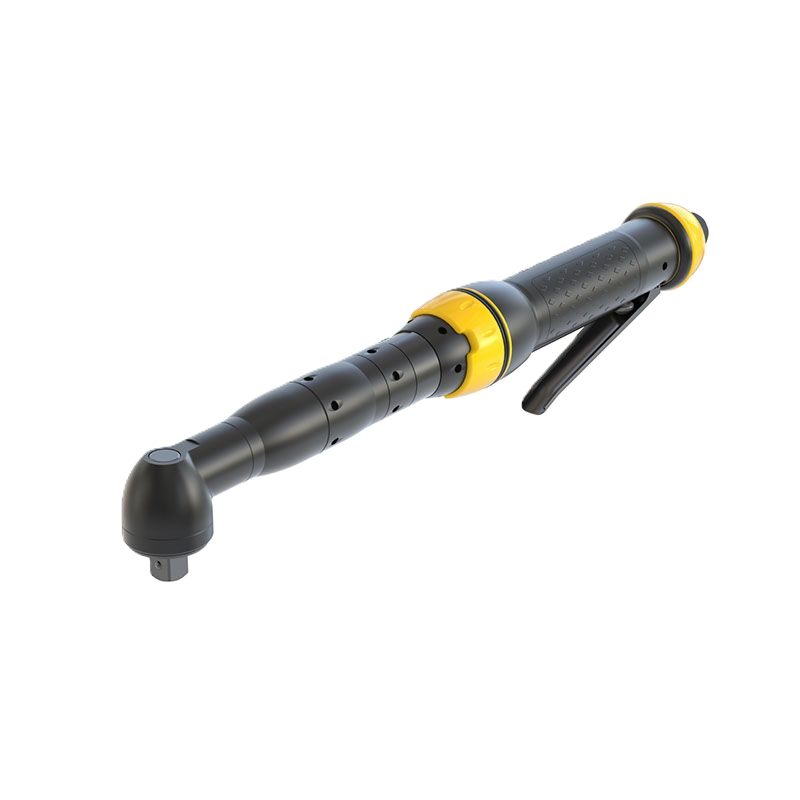

LTV39-2 R70-B13
Product Description
The Angle Nutrunner LTV range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening complemented by advanced ergonomic design the nutrunner ensures an unmatched level of productivity. Its lightweight design, durable long-life grip and low reaction force make it exceptionally easy to work with.
Technical Specifications
Specification
| Category | Specification |
| Dimensions & Weight | |
| Air Inlet Thread | 1/4" NPT |
| Angle Head Dimensions | 20mm (side), 41mm (height) |
| Fastener Size | M10 |
| Overall Length | 425 mm (16.7") |
| Output Size | 1/2" |
| Recommended Hose | 10 mm (3/8") |
| Square Drive | 1/2" |
| Weight | 4.6 lb (2.1 kg) |
| Design & Functions | |
| Ford Certification | CA N12/13 TR |
| Model Type | Angle Head |
| Output Type | Square (Male) |
| Reversible | Yes |
| SCIP Number | 512325c7-97f9-4ab7-9ad4-7c27c003eb75 |
| Shut-off Feature | Yes |
| Noise & Vibrations | |
| Sound Power | 92 dB(A) |
| Sound Pressure | 81 dB(A) |
| Vibration Level | <2.5 m/s² |
| Air Specifications | |
| Air Consumption | 34 CFM (16 l/s) |
| Max Working Pressure | 100 psig (6.9 bar) |
| Certifications | |
| EAC Certified | Yes |
| EU Compliance | 2006/42/EC |
| International Standards | ISO 11148-6 |
| Torque Performance | |
| Max Torque (Soft Joint) | 51 ft-lb (69 Nm) |
| Min Torque (Soft Joint) | 26 ft-lb (35 Nm) |
| Torque Range | 26-52 ft-lb (35-71 Nm) |
| Speed | |
| Free Speed | 350 RPM |
