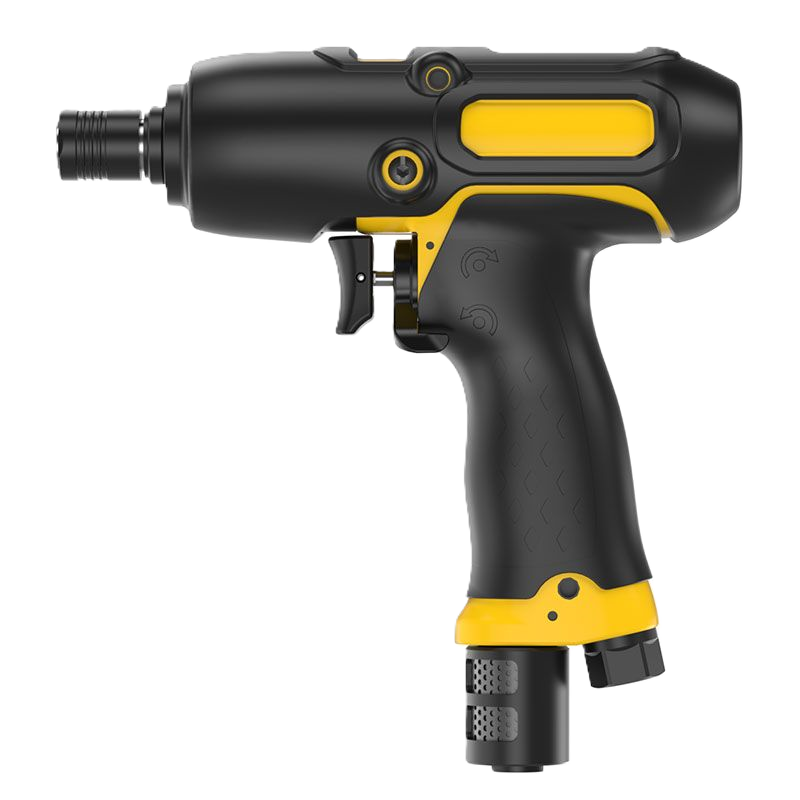

EP6PTI22 HR42-MT-L
Product Description
The Pistol ErgoPulse PTI shut-off tool is the ideal choice if you are looking for a faster production line and high operator comfort. Reliable and a powerful shut-off pulse that automatically shuts off the air supply when the pre-set torque is reached. It has a dramatically increased service interval thanks to innovative solutions, keeping the tool on the line instead of the tool crib. All PTI models can be used as lubricant free, just like other ErgoPulse tools and can be adjusted between Trim and AutoTrim modes with just a quick turn of a screw.
Technical Specifications
Specification
| Category | Specification |
| Dimensions & Weight | |
| Air Inlet Thread | 1/4" NPT |
| Fastener Size | M5 |
| CS Distance | 23 mm (0.91") |
| Overall Length | 168 mm (6.61") |
| Output Size | 1/4" Hex (Female) |
| Recommended Hose | 8 mm (5/16") |
| Square Drive | 1/4" |
| Weight | 2 lb (0.91 kg) |
| X-Gauge Diameter | 1.6 mm (0.063") |
| Speed | |
| Free Speed | 7,400 RPM |
| Capacity | |
| Oil Volume | 6 ml |
| Air Specifications | |
| Air Consumption | 13 CFM (6.1 l/s) |
| Max Working Pressure | 72 psi (5 bar) |
| Nominal Pressure | 58 psi (4 bar) |
| Torque Performance | |
| Fixed Transducer Torque | 32 Nm (23.6 ft-lb) CCW |
| Casing Tightening Torque | 20 Nm (14.75 ft-lb) |
| Torque Range | 8-16 ft-lb (11-22 Nm) |
| Noise & Vibrations | |
| Sound Pressure | 75 dB(A) |
| Vibration Level | <2.5 m/s² |
| Certifications | |
| EAC Certified | Yes |
| EU Compliance | 2006/42/EC |
| International Standards | EN ISO 11148-6:2012 |
| Design & Functions | |
| Model Type | Pistol Grip |
| Output Type | Hexagon (Female) |
| Pulsing Frequency | 12-20 Hz CCW |
| SCIP Number | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off Feature | Yes |
