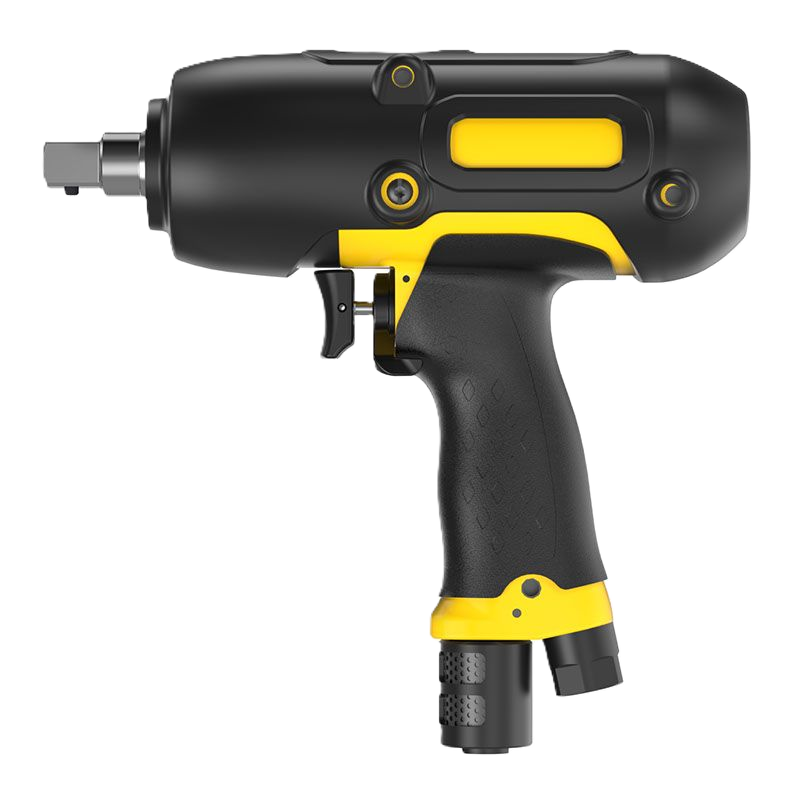

EP9PTI80 HR13-MT
Product Description
The Pistol ErgoPulse PTI shut-off tool is the ideal choice if you are looking for a faster production line and high operator comfort. Reliable and a powerful shut-off pulse that automatically shuts off the air supply when the pre-set torque is reached. It has a dramatically increased service interval thanks to innovative solutions, keeping the tool on the line instead of the tool crib. All PTI models can be used as lubricant free, just like other ErgoPulse tools and can be adjusted between Trim and AutoTrim modes with just a quick turn of a screw.
Technical Specifications
Specification
| Parameter | Specification |
| Dimensions & Weight | |
| Length | 191 mm (7.52") |
| Weight | 3.3 lb (1.5 kg) |
| Air Inlet | 3/8" NPT |
| Square Drive | 1/2" |
| Performance | |
| Torque Range | 37-59 ft-lb (50-80 Nm) |
| Max Torque (CCW) | 73.8 ft-lb (100 Nm) |
| Free Speed | 5,200 RPM |
| Pulsing Frequency | 16-25 Hz |
| Air System | |
| Air Consumption | 28 CFM (13.2 l/s) |
| Working Pressure | 91 psi (6.3 bar) |
| Max Pressure | 100 psi (6.9 bar) |
| Certifications | |
| Standards | EN ISO 11148-6:2012 |
| EAC Certified | Yes |
| Noise/Vibration | |
| Sound Pressure | 78 dB(A) |
| Vibration | 4.6 m/s² (15.1 ft/s²) |
