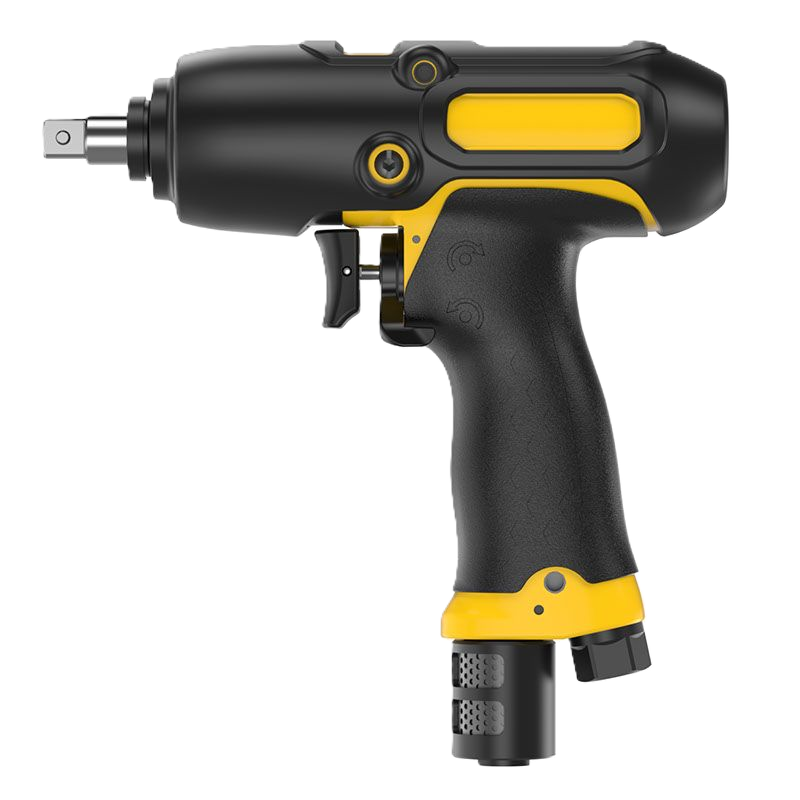

EP6PTI25 HR10-MT-L
Product Description
The Pistol ErgoPulse PTI shut-off tool is the ideal choice if you are looking for a faster production line and high operator comfort. Reliable and a powerful shut-off pulse that automatically shuts off the air supply when the pre-set torque is reached. It has a dramatically increased service interval thanks to innovative solutions, keeping the tool on the line instead of the tool crib. All PTI models can be used as lubricant free, just like other ErgoPulse tools and can be adjusted between Trim and AutoTrim modes with just a quick turn of a screw.
Technical Specifications
Specification
| Parameter | Specification |
| Dimensions | |
| Length | 168 mm (6.6") |
| Weight | 2 lb (0.9 kg) |
| Air Inlet | 1/4" NPT |
| Drive Size | 3/8" Square |
| Performance | |
| Torque Range | 9-18 ft-lb (12-24 Nm) |
| Max Torque (CCW) | 24 ft-lb (32 Nm) |
| Speed | 7,400 RPM |
| Pulsing Frequency | 12-20 Hz |
| Air System | |
| Air Consumption | 13 CFM (6.1 l/s) |
| Working Pressure | 58 psi (4 bar) |
| Features | |
| Fastener Size | M6 |
| Sound Level | 75 dB(A) |
| Vibration | <2.5 m/s² |
| Oil Capacity | 6 ml |
| Certifications | |
| Standards | EN ISO 11148-6:2012 |
| EAC Certified | Yes |
