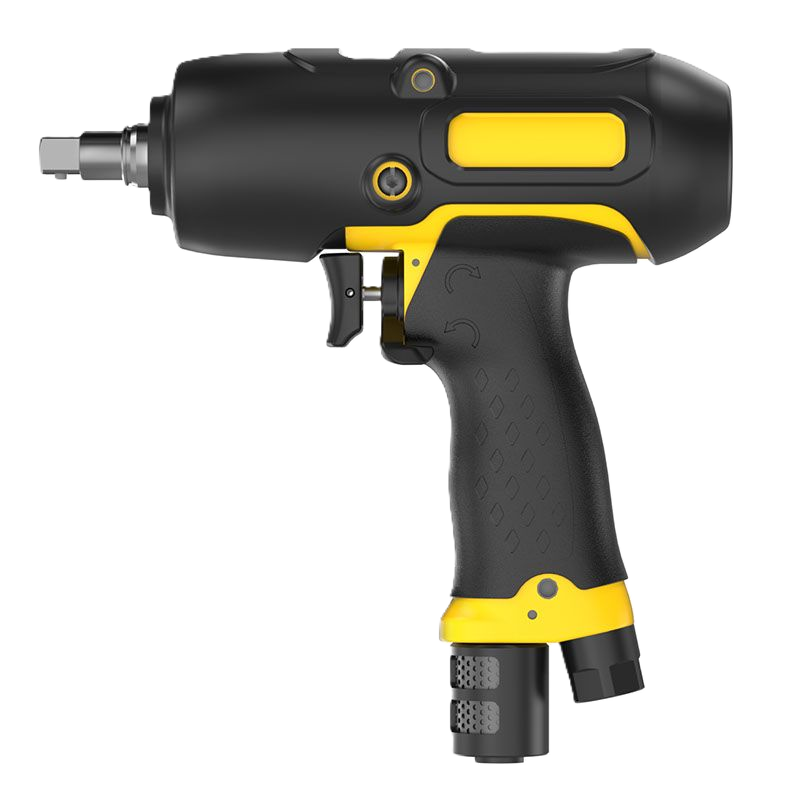

EP7PTI55 HR10-MT
Product Description
The Pistol ErgoPulse PTI shut-off tool is the ideal choice if you are looking for a faster production line and high operator comfort. Reliable and a powerful shut-off pulse that automatically shuts off the air supply when the pre-set torque is reached. It has a dramatically increased service interval thanks to innovative solutions, keeping the tool on the line instead of the tool crib. All PTI models can be used as lubricant free, just like other ErgoPulse tools and can be adjusted between Trim and AutoTrim modes with just a quick turn of a screw.
Technical Specifications
Specification
| Parameter | Imperial (Metric) |
| Dimensions & Weight | |
| Length | 7.05" (179 mm) |
| Weight | 2.5 lb (1.13 kg) |
| Air Inlet | 3/8" NPT |
| Square Drive | 3/8" |
| CS Distance | 1.06" (27 mm) |
| X-Gauge Diameter | 0.067" (1.7 mm) |
| Performance | |
| Torque Range | 22-40 ft-lb (30-54 Nm) |
| Max Torque (CCW) | 44 ft-lb (60 Nm) |
| Free Speed | 6,500 RPM |
| Pulsing Frequency | 19-28 Hz CCW |
| Air System | |
| Air Consumption | 21 CFM (9.9 l/s) |
| Working Pressure | 91 psi (6.3 bar) |
| Max Pressure | 100 psi (6.9 bar) |
| Oil Capacity | 0.3 fl oz (9 ml) |
| Fastener Info | |
| Bolt Size | M10 |
| Recommended Hose | 3/8" (10 mm) |
| Noise/Vibration | |
| Sound Pressure | 78 dB(A) |
| Vibration | 10.8 ft/s² (3.3 m/s²) |
| Vibration Uncertainty | 2.95 ft/s² (0.9 m/s²) |
| Certifications | |
| Standards | EN ISO 11148-6:2012 |
| EAC Certified | Yes |
| EU Compliance | 2006/42/EC (MD) |
| Design Features | |
| Model Type | Pistol |
| Output Type | Square, Male |
| Shut-off System | Yes |
| SCIP Number | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
