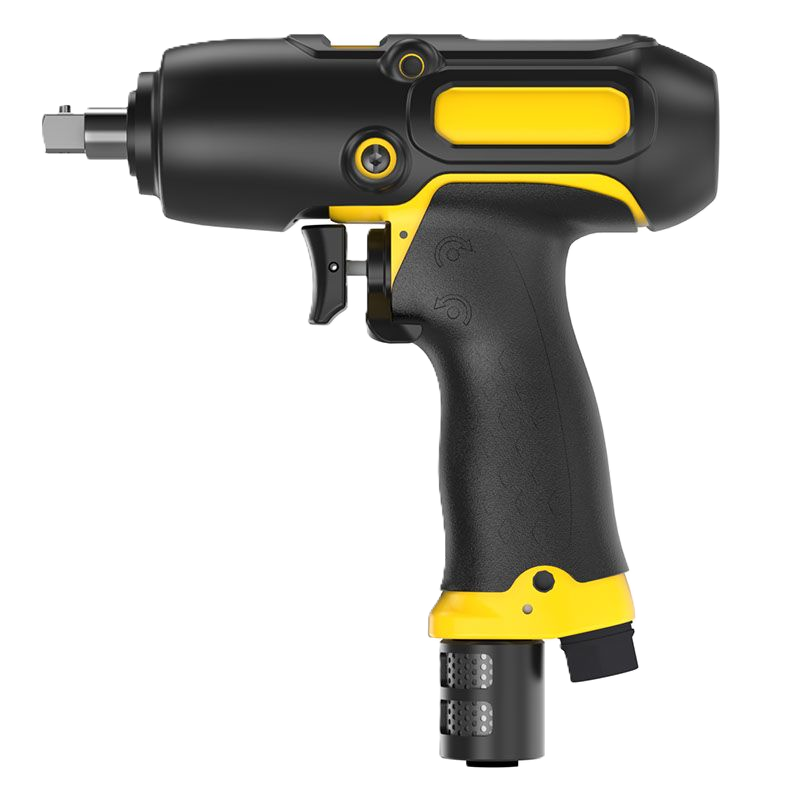

EP4PTI9 HR10-MT
Product Description
The Pistol ErgoPulse PTI shut-off tool is the ideal choice if you are looking for a faster production line and high operator comfort. Reliable and a powerful shut-off pulse that automatically shuts off the air supply when the pre-set torque is reached. It has a dramatically increased service interval thanks to innovative solutions, keeping the tool on the line instead of the tool crib. All PTI models can be used as lubricant free, just like other ErgoPulse tools and can be adjusted between Trim and AutoTrim modes with just a quick turn of a screw.
Technical Specifications
Specification
| Parameter | Imperial (Metric) |
| Dimensions & Weight | |
| Air Inlet Thread | 1/4 in |
| Bolt Size | M5 mm |
| CS Distance | 23 mm |
| Length | 164 mm |
| Output Size | 3/8" |
| Recommended Hose Size | 8 mm |
| Square Drive | 3/8 in |
| Weight | 2 lb |
| X-Gauge Diameter | 1.55 mm |
| Speed | |
| Free Speed | 5000 r/min |
| Capacity | |
| Oil Volume in Full Pulse Unit | 4.4 ml |
| Air System | |
| Air Consumption Under Load | 9 cfm |
| Max Working Pressure | 100 psi |
| Nominal Working Pressure | 91 psi |
| Torque | |
| Fixed Transducer Torque CCW Service | 15 Nm |
| Pulse Unit Casing Tightening Torque | 20 Nm |
| Torque Range Max | 7 ft-lb |
| Torque Range Min | 3 ft-lb |
| Noise & Vibrations | |
| Sound Power | 87 dB(A) |
| Sound Pressure | 76 dB(A) |
| Sound Standard | ISO15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Standard | ISO28927-2 |
| Vibration Uncertainty | 0.8 m/s² |
| Vibration Value | 1.7 m/s² |
| Certifications, Standards & Directives | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC (MD) |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Design & Functions | |
| Model Type | Pistol |
| Output Type | Square, Male |
| Pulsing Frequency CCW | 24-28 Hz |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | Yes |
