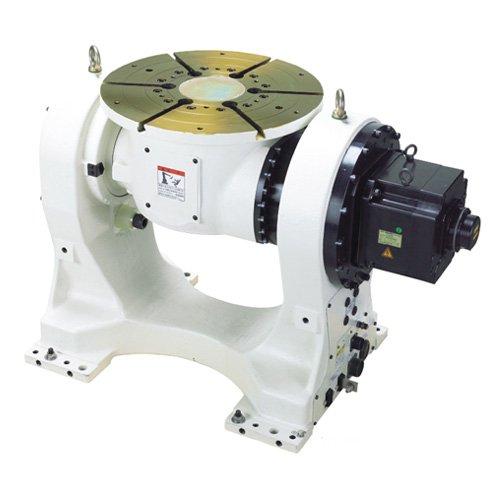

2PF1000
Product Description
2-Axes Double Support Positioner 2PF Series * High-speed motion increases production efficiency! An increase in the maximum rotation speed of the tilting axis by 2.5 times and in rotation axis by 2 times was achieved in comparison with the conventional machine 300 kg payload type.
Technical Specifications
| Model Name | A2PF1001-ENN |
| Max: Payload Capacity | 1000 kg |
| Rotating Speed | 2.9 rad/s (166°/s) |
| Tilting Speed | 1.4 rad/s (b2°/s) |
| Rotating Torque | 882 N·m |
| Tilting Torque | 3704 N·m |
| Position Repeatability | ± 0.08 mm (Position at R250 mm) |
| Stop Position | Random |
| Mass (Weight) | 470 kg |
