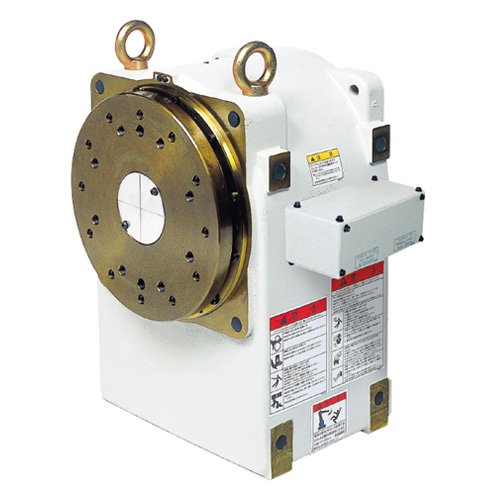

1PB500
Product Description
Positioner Headstock 1PB Series * Can be used to build varied jig systems with a large degree of positioning flexibility. * A hole through the center of the rotary table, enabling cables and hoses to be routed through easily.
Technical Specifications
| Model Name | A2PB1002-E |
| Max. Payload Capacity | 500 kg |
| Rotating Speed | 2.1 rad/s (120°/s) |
| Allowable Rotating Torque | 490 N - m |
| Position Repeatability | ≤ 0.1 mm (Position at R300 mm) |
| Stop Position | Random |
| Mass (Weight) | 170 kg |
